Wilson Audio Lōkē Subwoofer

Wilson Audio Lōkē Subwoofer

LōKē® is an all-in-one, simple to setup, and easy to manage subwoofer solution. Lōkē is Wilson Audio’s smallest subwoofer system to date. This beautiful subwoofer is completely handcrafted by the same artisans and professionals who sculpt all Wilson Audio loudspeakers, made in the United States of America.

Incorporated into LōKē’s built-in amplifier (500 watts) are the most utilized functions from Wilson Audio’s acclaimed ActivXO® Dual Subwoofer Crossover, including such key parameters as crossover frequency, crossover slope, phase, and level.


View full details
MORE INFORMATION

Wilson Audio’s Smallest Subwoofer

At the heart of every Wilson Audio product, you will find designs specifically created to elevate the audio playback experience in your home.

Incorporated into LōKē’s built-in amp are the most utilized functions from Wilson Audio’s acclaimed ActivXO Dual Subwoofer Crossover, including such key parameters as crossover frequency, crossover slope, phase, and level.

Lōkē encompasses full compatibility across the myriad of TuneTot installations but also fundamentally expands the core capabilities of their other smaller floorstanding loudspeaker models: SabrinaX, Yvette, Sasha DAW, and their predecessors. From the beginning, the Wilson Audio Special Applications Engineering team wanted to create a subwoofer system that follows the North Star development parameters set forth by David Wilson.

Wilson Audio is excited to demonstrate how much of David’s original intent is captured by Lōkē and invite you to visit your local authorized Wilson Audio Dealer for an unforgettable musical experience that will reshape your thinking around small footprint subwoofer systems.

Standard Colors:

  • Galaxy Gray
  • GT Silver
  • Quartz
  • Carbon
  • Grigio Medio

 - Upgrade & Pearl Colors on Request.

Wilson Gloss™  Colors

Wilson Audio’s commitment to quality begins with the sound of their loudspeakers, but hardly ends there. The physical beauty and craftsmanship of Wilson products have long set the benchmark for the industry. Now, Wilson Audio is excited to introduce an updated and expanded range of colors, which include new Premium Pearl options.

WilsonGloss is a multi-stage process, from a proprietary protective gel coat layer through base color to the final series of clear coats—all followed by meticulous hand polishing. The final finish is unrivaled—even by the world’s greatest automobile manufacturers. Wilson Audo= have updated the selection of upgrade colors, which are available at a modest surcharge. Wilson Audio Premium WilsonGloss includes five new colors, each in a special pearl finish, which involve additional paint steps. WilsonGloss Premium is the ultimate expression of sophistication and beauty.

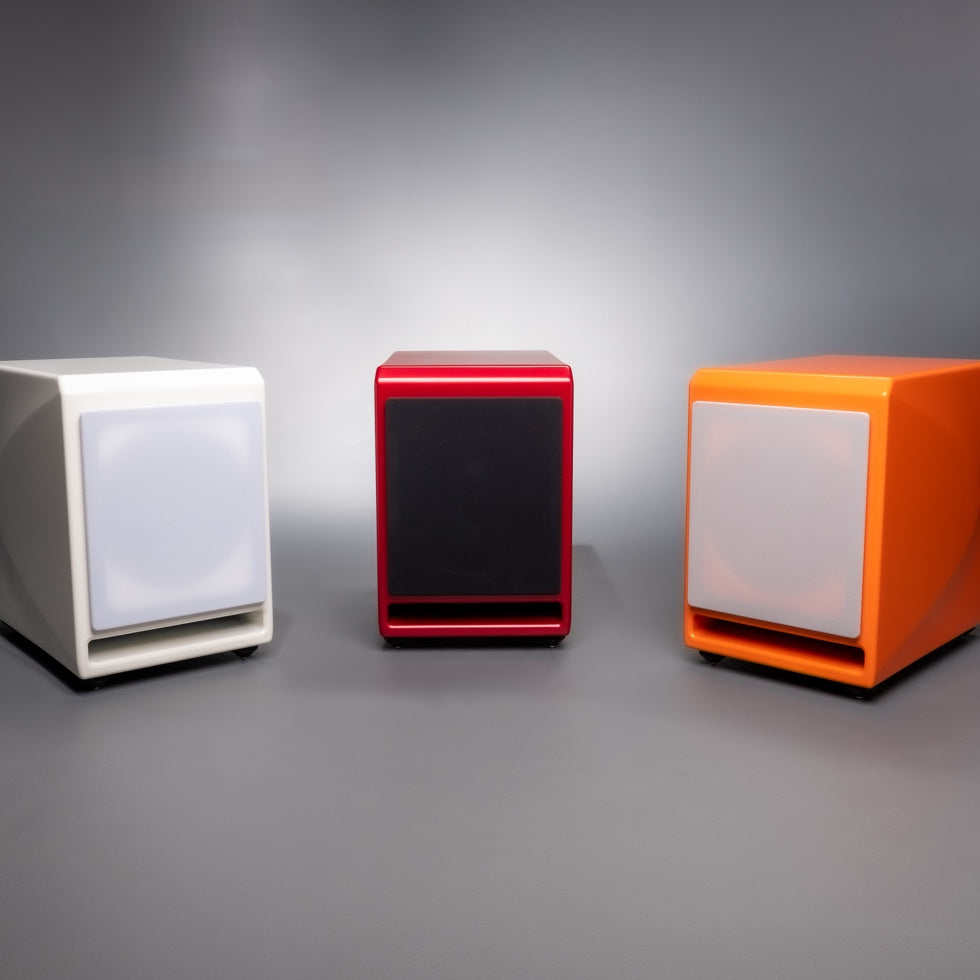

When combined with a choice of six grille-cloth colors, it’s easier than ever to individually design your Wilson loudspeaker so that it will complement your décor, or express your pride of ownership. Along with standard black grilles, you can alternatively specify Slate Grey, Parchment Grey, Mocha, Blanco White, or Le Mans Blue at no additional cost. With hundreds and hundreds of combinations available, you have the ability to design a Wilson speaker unique to your taste and décor.

For the ultimate in individual expression, Wilson Audio offers Custom Sample Match WilsonGloss finishes. Through your Wilson Dealer, provide them with your wall color, favourite automotive paint, or just about any color sample and we can, for an additional cost, create your loudspeakers in a one-of-a-kind WilsonGloss finish. This service includes on-site storage of custom paint for a period of five years. Contact your Dealer for program requirements and pricing.

SPECIFICATIONS
Woofer
One - 25.4 cm
Amplifier Power
500 Watts
Frequency Response
20 Hz to 250 Hz (+/- 1 dB) (Amplifier)
Effective Piston Area
21.75 in^2
Effective Displacement
33.42 in^3
Height
52.71 cm
Width
35.24 cm
Depth
55.24 cm – with grill
Depth
53.34 cm – without grill
System Weight
49.9 kg
Total System Shipping Weight (approx)
79.38 kg



Parameters
Test Conditions
Typical Value
Input Sensitivity (L+R)
RCA IN 520W/4 Ω @ 115VAC
-10dBV

XLR IN 500W/4 Ω @ 115VAC
-10dBV
Input Sensitivity (L+R)
RCA IN Normal input level switch
310 mVrms

RCA IN Hi-Level input level switch
620 mVrms
(Signal in Left and Right)
XLR IN Normal input level switch
630 mVrms

XLR IN Hi-Level input level switch
1.25 Vrms
Max Input Level (L+R)
RCA IN Normal input level switch
1.1  Vrms

RCA IN Hi-Level input level switch
2.3 Vrms

XLR IN Normal input level switch
2.4 Vrms

XLR IN Hi-Level input level switch
4.6 Vrms
Input Impedance
RCA IN
10k Ω

XLR IN
20k Ω
Gain
AMP output 100Hz @ 1W output
+43.3 dB (normal)


+37.2 dB (Hi- Level IN)
Input Saturation Level
RCA left or right 100Hz
>2V (Hi-Level IN)

XLR left or right 100Hz
>2V (Hi-Level IN)
Noise Level
volume=0dB (MAX)@ A weighted
-62.3dBV
S/N Ratio
volume=0dB (MAX)@ A weighted
98.4 dB
THD+N Ratio
20-20kHz Filter, Rated Power @100Hz
< 1%
Frequency Response
Amplifier output
20 Hz to 250 Hz (+/- 1 dB)
Output Power (4Ω)
100Hz @ 115VAC, Input: -10dBV (L+R)
500 W
Auto ON/OFF


Auto ON Sensitivity
RCA Left ,100Hz
3 mV
Auto OFF Time

20 mins
Time Delay

2 ms
Power Amplifier Protection
A- Short-circuit and under load protection
A-Yes

B- Thermal protection
B-Yes

C-Power Supply Protection-Full Power Protection
C-Yes
Power Consumption:
@ 230Vac/60Hz A- Standby mode
A- 0.5 W 0.05 A

@ 230Vac/60Hz B- ON mode
B- 8.0 W 0.13 A

@ 230Vac/60Hz C- 1/8 power
C- 83 W 0.88 A

@ 230Vac/60Hz D- 1/4 power
D- 157 W 1.61 A

@ 230Vac/60Hz E- Rated power
E- 626 W 5.6 A

@ 115Vac/60Hz A- Standby mode
A- 0.5 W 0.05 A

@ 115Vac/60Hz B- ON mode
B- 7.7 W 0.18 A

@ 115Vac/60Hz C- 1/8 power
C- 83 W 1.51 A

@ 115Vac/60Hz D- 1/4 power
D- 162 W 2.78 A

@ 115Vac/60Hz E- Rated power
E- 654 W 9.4 A
