Wilson Audio Active XO Cross-over

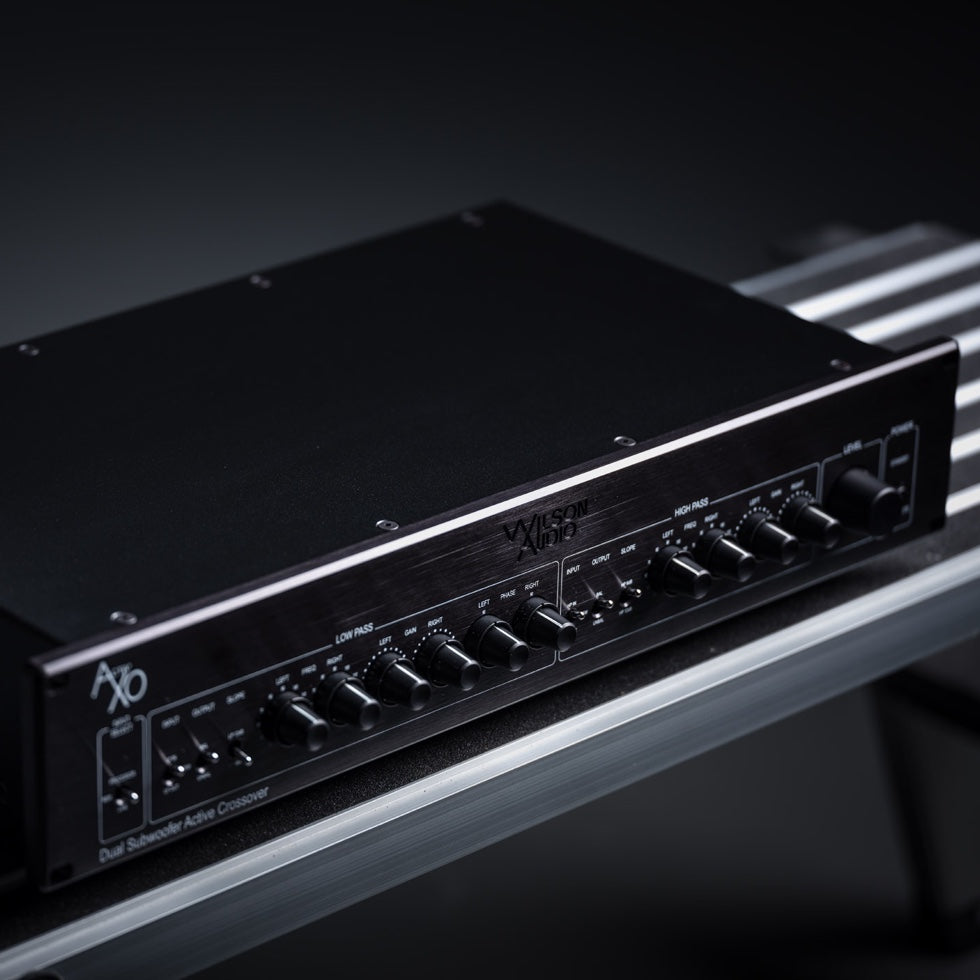

The ActivXO is the long-awaited and thoroughly updated replacement for Wilson’s revolutionary Controller. It is a two-channel, fully analogue electronic crossover with an array of features.
It can be used in conjunction with a dedicated music system, or as the subwoofer control unit in a home theatre system.
In systems used for the enjoyment of music and surround the film, the ActivXO is configurable to accommodate both — optimally and simultaneously.

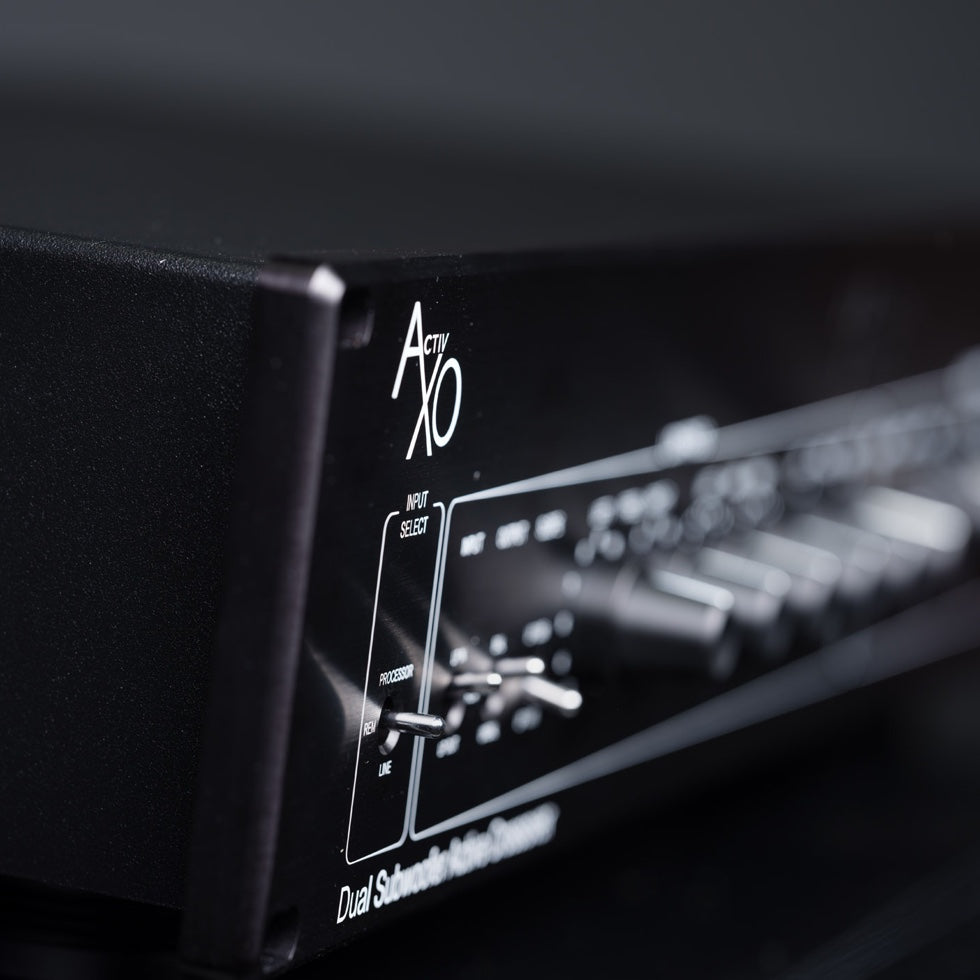

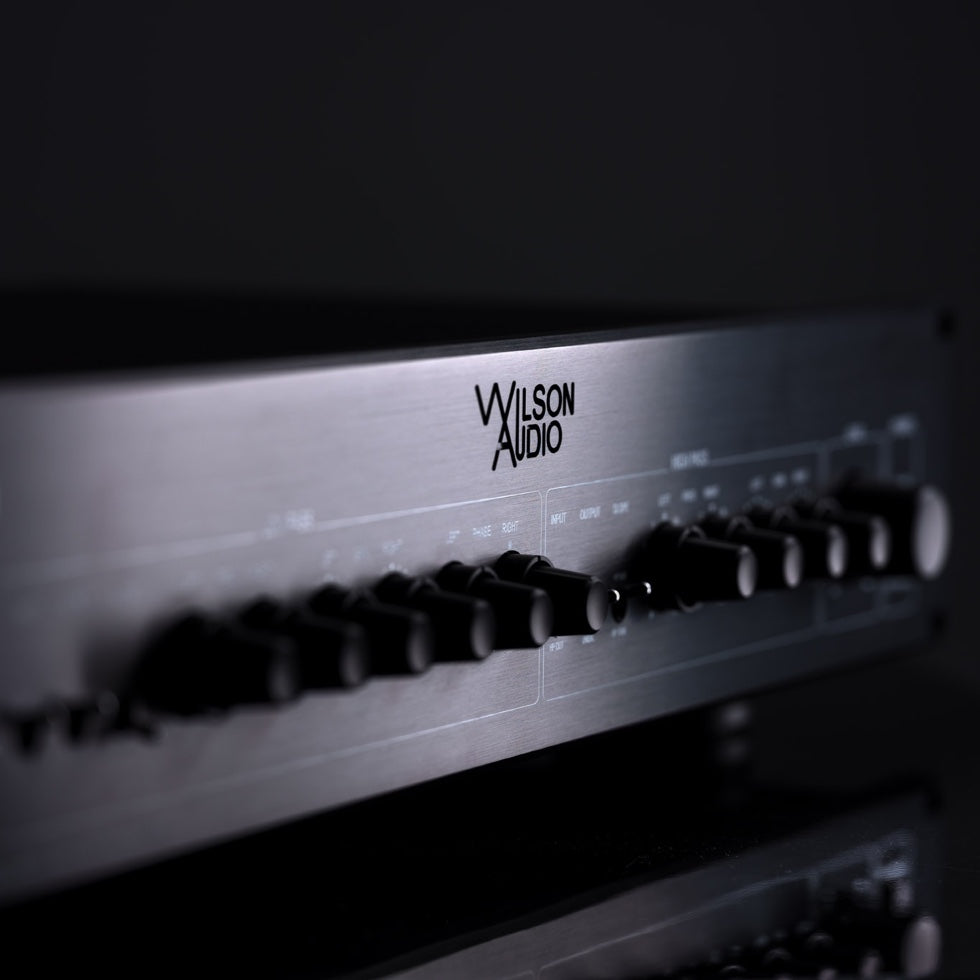

When music is the primary focus, with a simple flick of a switch (accomplished either with a front panel toggle or a 12 volt trigger) the ActivXO becomes a feature-rich active crossover. You can control both crossover frequency and slope for the high-and low-pass filters. A continuously variable phase control ensures any Wilson loudspeaker seamlessly integrates with any of Wilson’s subwoofers.
The ActivXO accepts both single-ended and balanced inputs, and can output to one or a stereo pair of subwoofers for the most demanding applications. It can be used with any of Wilson’s subwoofers, and is included with the purchase of the WAMM Master Chronosonic.
Input Impedance | : | 56k Ω Single-ended, 4k Ω Balanced |
Inputs | : | Balanced and Single-Ended |
Outputs | : | Processor High-Pass, Balanced and Single-Ended |
| : | 2 Stereo Low-Pass, Balanced and Single-Ended |
| : | 2 Mono Level & Frequency (30 to 50 Hz) |
Low Pass Filter | : | Adjustable, 12 dB or 18 dB / Octave |
| : | Level & Frequency (30 to 150 Hz) |
High Pass Filter | : | Adjustable, 6 dB or 12 dB / Octave |

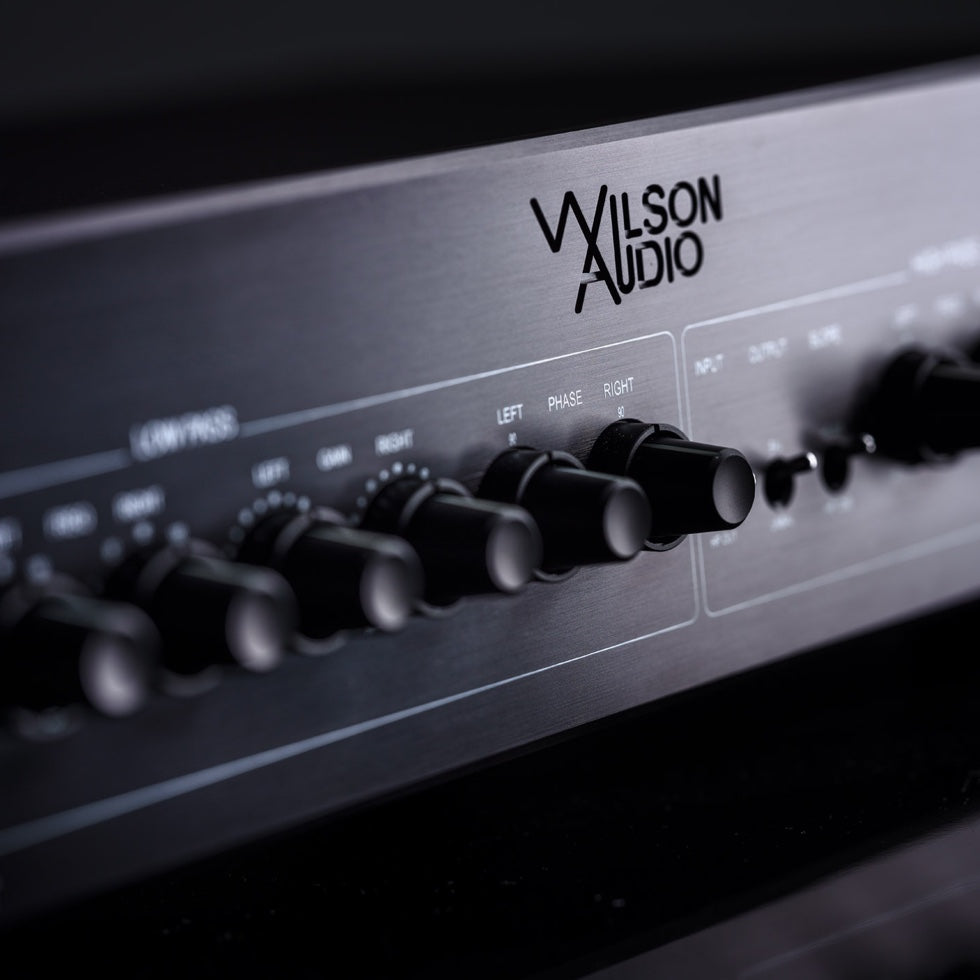

Phase | : | 0 - 180 degrees, Continuously Variable |
EQ | : | Variable Frequency (30 to 150 Hz) |
| : | Level (+/- 10 dB), and Q (.2 to 2) |
Dimensions | : | Height: 11.43 cm - includes feet |
| : | Width: 18.26 cm |
| : | Depth: 29.21 cm - includes knobs |
Weight | : | 7.6 kg |
