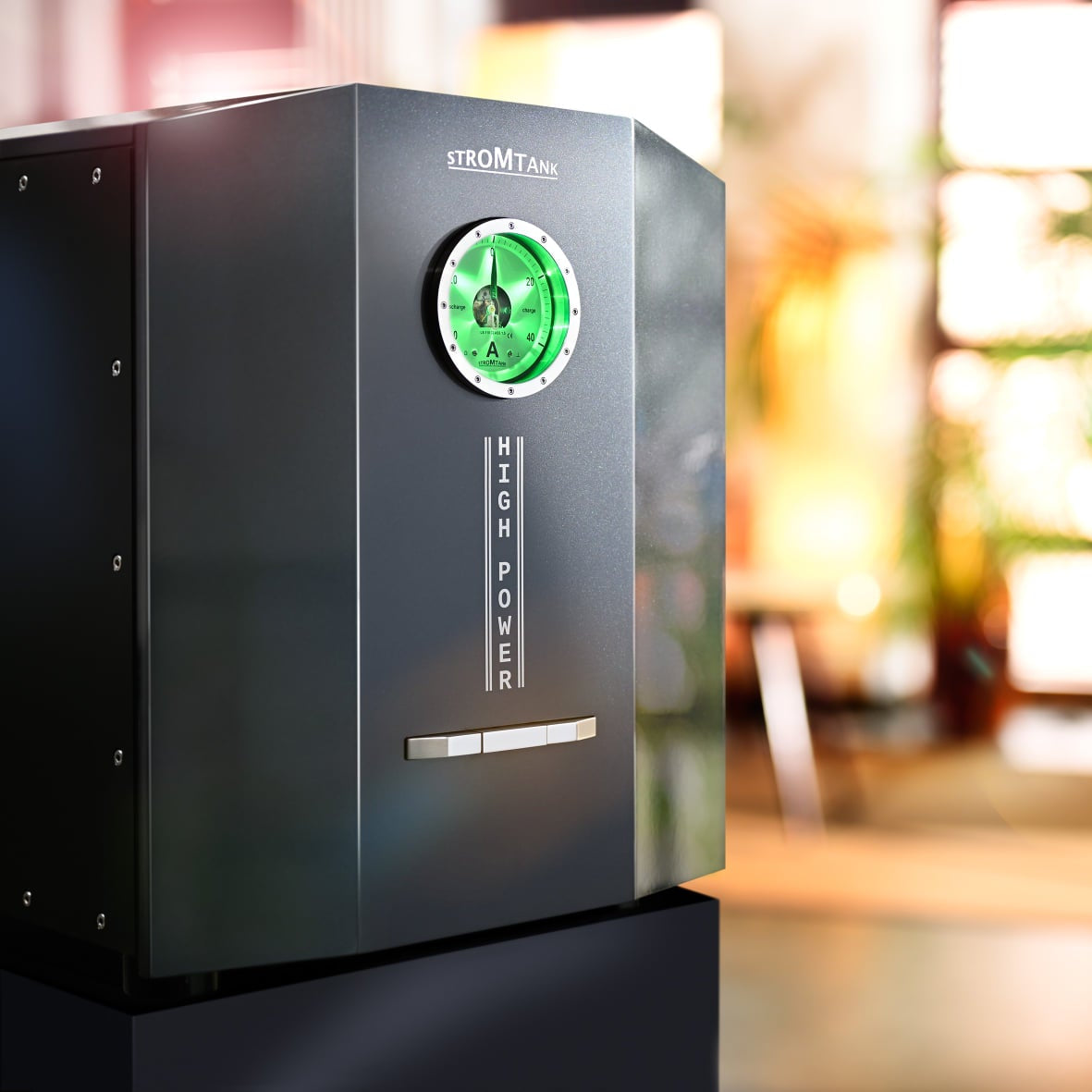

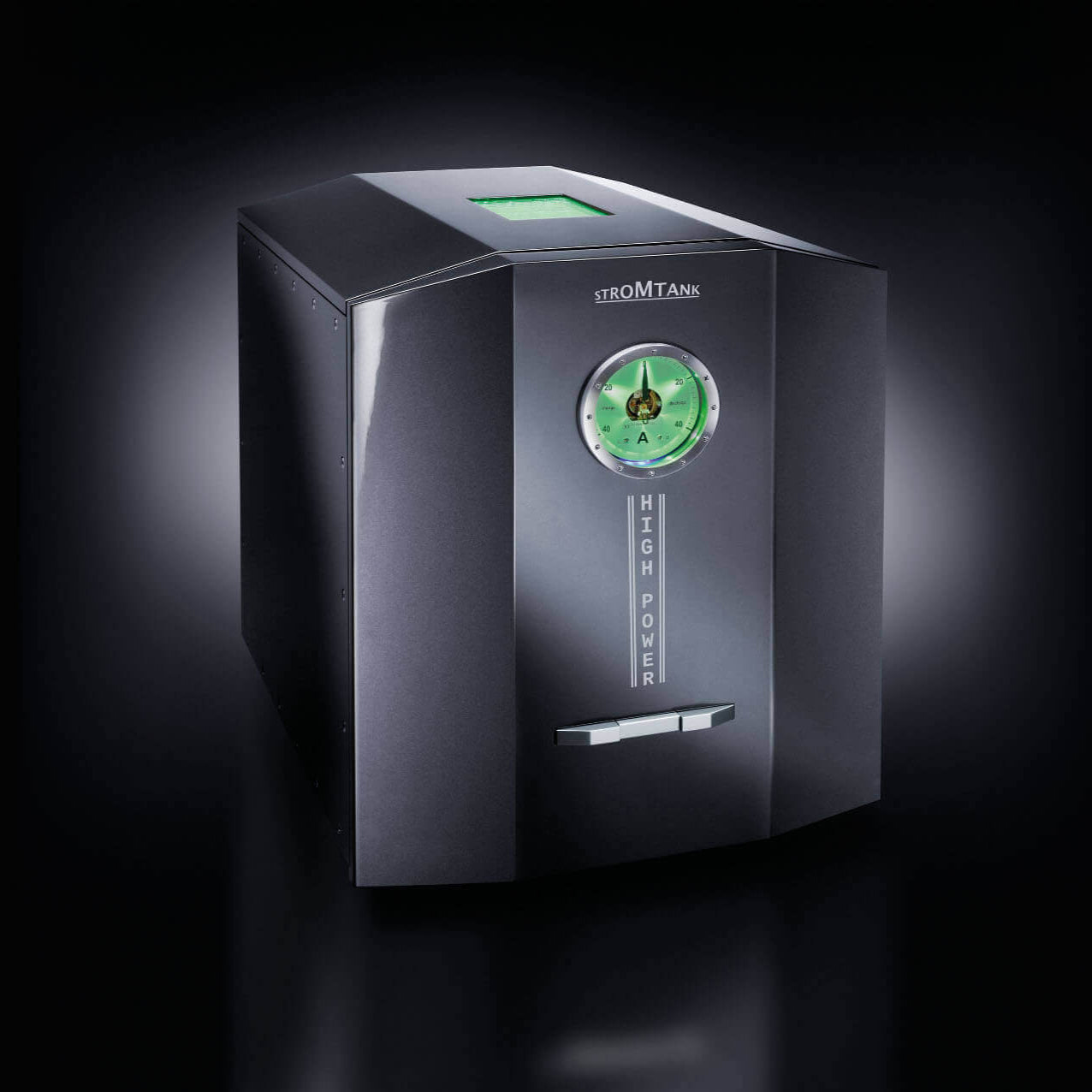

Stromtank S-5500 HP High Capacity Power Generator

Stromtank S-5500 HP High Capacity Power Generator

Stromtank is an innovative battery array with state-of-the-art LiFePO4-technology: long cycle life, absolute safe and excellent high temperature achievements.

The Stromtank S 5000 HP (high-power) offers top performances of more than 5.000 W for most ambitious setups. It is even possible to use several units for very complex set-ups to achieve outstanding results.

The cutting edge of power products!
View full details
MORE INFORMATION

Upgrade your listening pleasure

After extensive research on various ways to improve the quality of the network, Stromtank opted for a radically different approach. Their goal is to make you completely independent from the traditional, fluctuating domestic power grid. Regardless of what happens with the electricity, your system is always unaffected. The Stromtank power generator offers you the unique opportunity to provide your system with stable energy, completely disconnected from the electrical grid.

Don’t wait until midnight to get the best sound!

Stromtank is an innovative battery array with state-of-the-art LiFePO4-technology: long cycle life, absolute safe and excellent high temperature achievements. The Stromtank S 5000 HP (high-power) offers top performance of more than 5000 W for the most ambitious setups. It is even possible to use several units for very complex setups to achieve outstanding results.

The perfect addition for your music system

When you switch to the disconnected mode, the Stromtank provides all the perfect clean power for several hours and you system is completely disconnected from the grid. No more fluctuations. No more noise. Just perfect clean power for you system to perform at its best.

When the battery state-of-charge reaches a critical minimum, the Stromtank will automatically recharge from the mains, and you can continue listening without interruption.



SPECIFICATIONS
Input AC Parameters ON-grid

Input Voltage – factory set
100 - 120 Vac / 230 - 240 Vac
Input Frequency range – factory set
45 to 65 Hz
Input Current Adjusted – factory set
10 Aac
Transfer Time
< 15 ms, on grid to off grid
Output AC Parameters OFF-grid

Output Voltage – Factory Settings
100-130Vac / 200-245Vac (pure sine wave)
Output Frequency
50 Hz / 60 Hz +/- 0.05% (crystal controlled)
Harmonic Distortion
< 2%
Continues Power @25°C
1.500 VA
Power 30min. @ 25°C
2.400 VA
Peak Power 3sec. @ 25°C
5.200 VA
Ø battery operating time / average load 400VA (Cos φ=1)
6 hours
Maximum Load
up to short circuit
Maximum Asymmetric Load
up to p cont.
Load Detection (standby)
2.5 W
Cos φ
0.1 – 1
Maximum Efficiency
93% (dc/ac conversion mode)
Consumption Stand-by / on
3 W / 16 W
Overload + short-circuit protection
automatic disconnecting with 3 restart attempts
Overheat Protection
warning before shut-down with automatic restart
Operating Temperature
10 °C – 45°C
Relative Humidity
0 - 85% non-condensing
Acoustic Level
< 29 dB
Battery power Unit

Battery Type
LFP - Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage
48 Vdc
Nominal Capacity
100 Ah
Charge Current – Factory Setting
-
Working Temperature
-
BMS – Battery Management System
10 Adc
Working Temperature
Output AC Parameters OFF-grid
BMS – Battery Management System
Active Balancing
BMC – Battery Main Controller
Main Controller and Monitor Processor
CMC – Cell Management Controller
Sensing Temperature, Current and Voltage

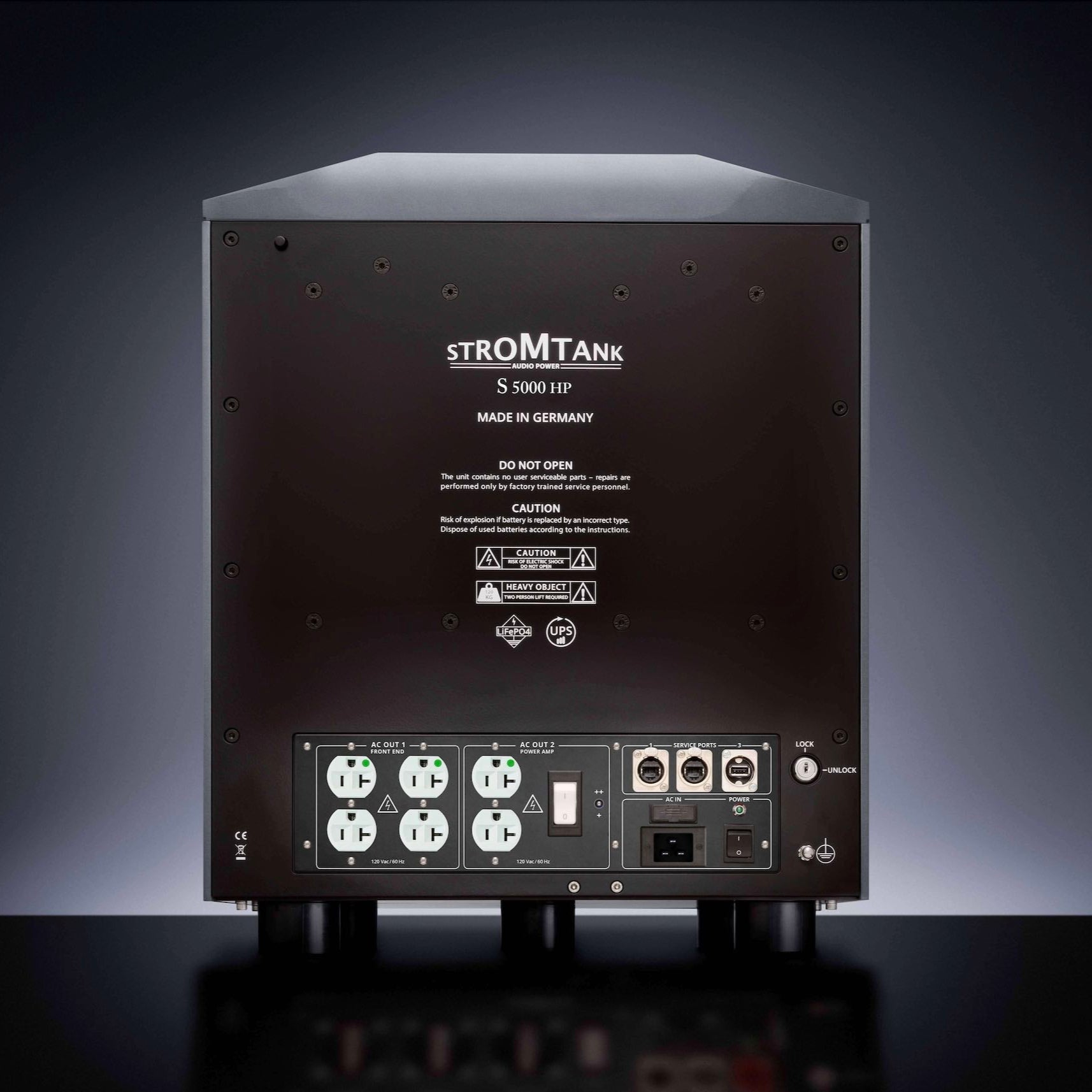

Terminal Area

AC Output Receptacles
3x... Hubbell duplex, Hospital Spec. Grade
OR
4x... Furutech High perf. Schuko sockets
AC Output Fuse
thermal – magnetic circuit break
AC Input Connection
ICE 320 - C14 (fuse 16/10AT)
Interface
3 service ports
Power Switch
on/off (“on” = green LED)
Safety key switch for Shipping
key switch “Release/Lock” all functions
Additional Features

Finish Standard
meteorit
Dimensions
48 x 58 x 59 cm (WxHxD)
Weight
125 kg
Options
* Metallic-black and meteorit front-finish available at additional cost.

Custom Finish upon request
