Stromtank S-1000 Source Component Power Generator

Stromtank S-1000 Source Component Power Generator

The Stromtank power generator offers you the unique opportunity to provide your system with stable energy, completely disconnected from the electrical grid.

This complete network separation works for hours and the main feature of each Stromtank is a powerful generator combined with a high capacity battery.

Stromtank uses a highly advanced battery management system coupled with special LiFe-PO4 batteries ensuring perfect current delivery and very long life-cycle.

View full details
MORE INFORMATION

The consequent way to natural sound

Today‘s AC power lines are affected by countless active electricity consumers, which leads to a high load and considerable pollution of the electricity. When AC noise trickles into the critical components of an audio system, low signals are faded out and performance is affected. This low-level content is critical as it conveys the critical over-tones and environmental conditions in audio and depth and clarity in videos. Under these circumstances nobody exhausts the real full potential of their high-end audio systems and is looking for a clean, undisturbed grid power to achieve the next level of music quality.

Total Isolation

One of the most important aspects to consider if you want to hear the excellent quality of your audio-components is the purity and stability of the grid signal.

Only the Stromtank power generators offer you the unique opportunity to provide your system with stable energy, completely disconnected from the electrical grid. This complete network separation works for hours and the main feature of each Stromtank is a powerful generator combined with a high capacity battery. Stromtank uses a special type of LFP battery – the LiFe-PO4. These batteries are intrinsically safe, environmentally friendly, very cycle- resistant and lightweight. The excellent load capacity and a long service life speak for the future of this technology.

The perfect addition for your audio-setup

When you switch to the disconnected mode, the Stromtank provides all the perfect clean power for several hours and you system is completely disconnected from the grid. No more fluctuations. No more noise. Just perfect clean power for you system to perform at its best. The Stromtank recharges automatically from the mains when the battery state-of-charge exceeds a critical minimum.

STROMTANK – The power foundation that lifts up your system!





SPECIFICATIONS
Input AC Parameters ON-grid

Input Voltage – factory set
100 - 120 Vac / 230 - 240 Vac
Input Frequency range – factory set
45 to 65 Hz
Input Current Adjusted – factory set
10 Aac
Transfer Time
< 15 ms, on grid to off grid
Output AC Parameters OFF-grid

Output Voltage – Factory Settings
100-130Vac / 200-245Vac (pure sine wave)
Output Frequency
50 Hz / 60 Hz +/- 0.05% (crystal controlled)
Harmonic Distortion
< 2%
Continues Power @ 25°C
450 VA
Power 30min. @ 25°C
700 VA
Peak Power 3sec. @ 25°C
1.800 VA
Ø battery operating time / average load 400VA (Cos φ=1)
2.5 hours
Maximum Load
up to short circuit
Maximum Asymmetric Load
up to p cont.
Load Detection (standby)
2.5 W
Cos φ
0.1 – 1
Maximum Efficiency
93% (dc/ac conversion mode)
Consumption Stand-by / on
1.5 W / 8W
Overload + short-circuit protection
automatic disconnecting with 3 restart attempts
Overheat Protection
warning before shut-down with automatic restart
Operating Temperature
10 °C – 45°C
Relative Humidity
0 - 85% non-condensing
Acoustic Level
< 29 dB
Battery power Unit

Battery Type
LFP - Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage
24 Vdc
Nominal Capacity
40 Ah
Charge Current – Factory Setting
-
Working Temperature
-
BMS – Battery Management System
5 Adc
Working Temperature
Output AC Parameters OFF-grid
BMS – Battery Management System
Active Balancing
BMC – Battery Main Controller
Main Controller and Monitor Processor
CMC – Cell Management Controller
Sensing Temperature, Current and Voltage

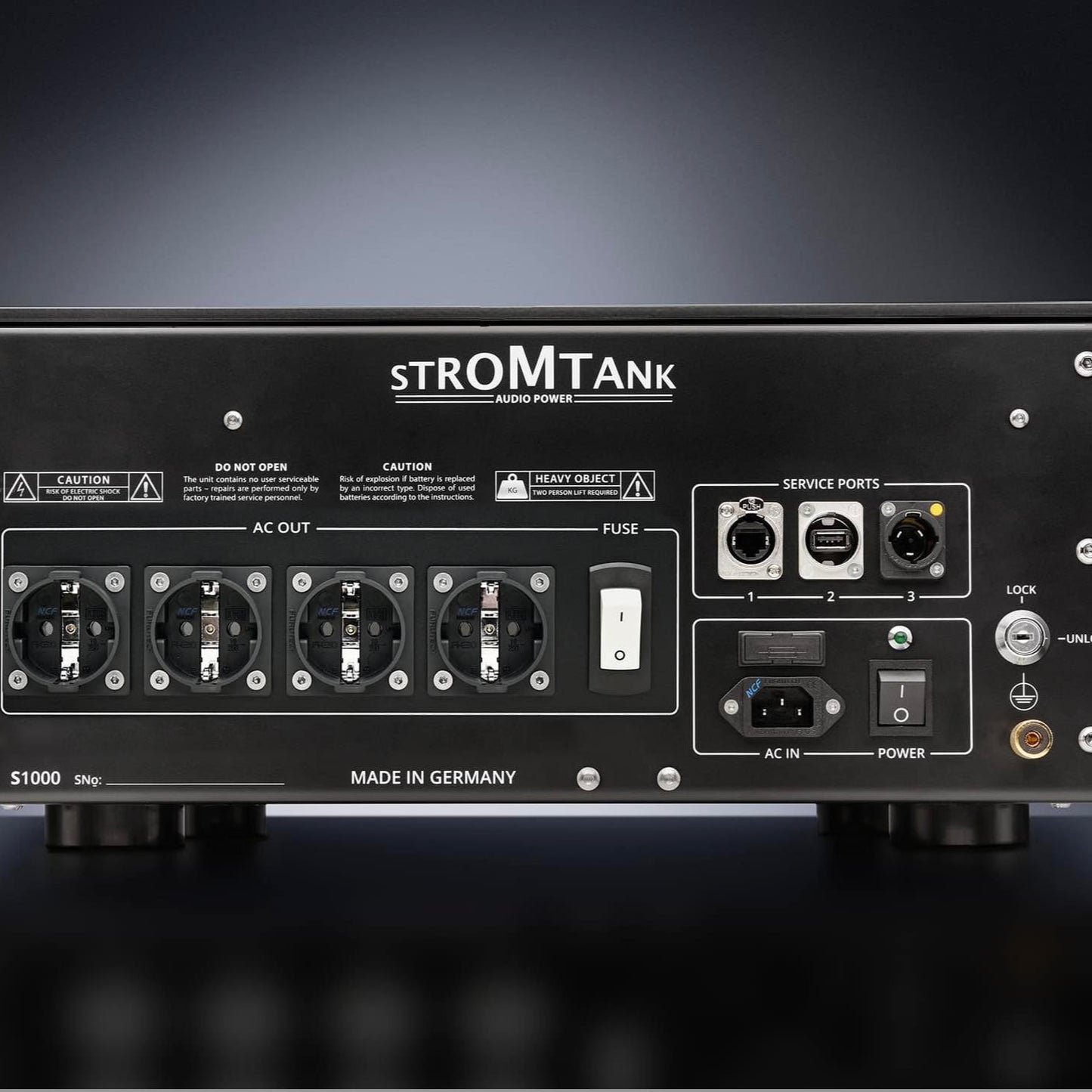

Terminal Area

AC Output Receptacles
4x... Hubbell duplex, Hospital Spec. Grade
OR
4x... Furutech High perf. Schuko sockets
AC Output Fuse
thermal – magnetic circuit break
AC Input Connection
ICE 320 - C14 (fuse 16/10AT)
Interface
3 service ports
Power Switch
on/off (“on” = green LED)
Safety key switch for Shipping
key switch “Release/Lock” all functions
Additional Features

Finish Standard
Silver Anodized*
Dimensions
48 x 22 x 47 cm (WxHxD)
Weight
41 Kg
Options
* Metallic-black and meteorit front-finish available at additional cost.

Custom Finish upon request
