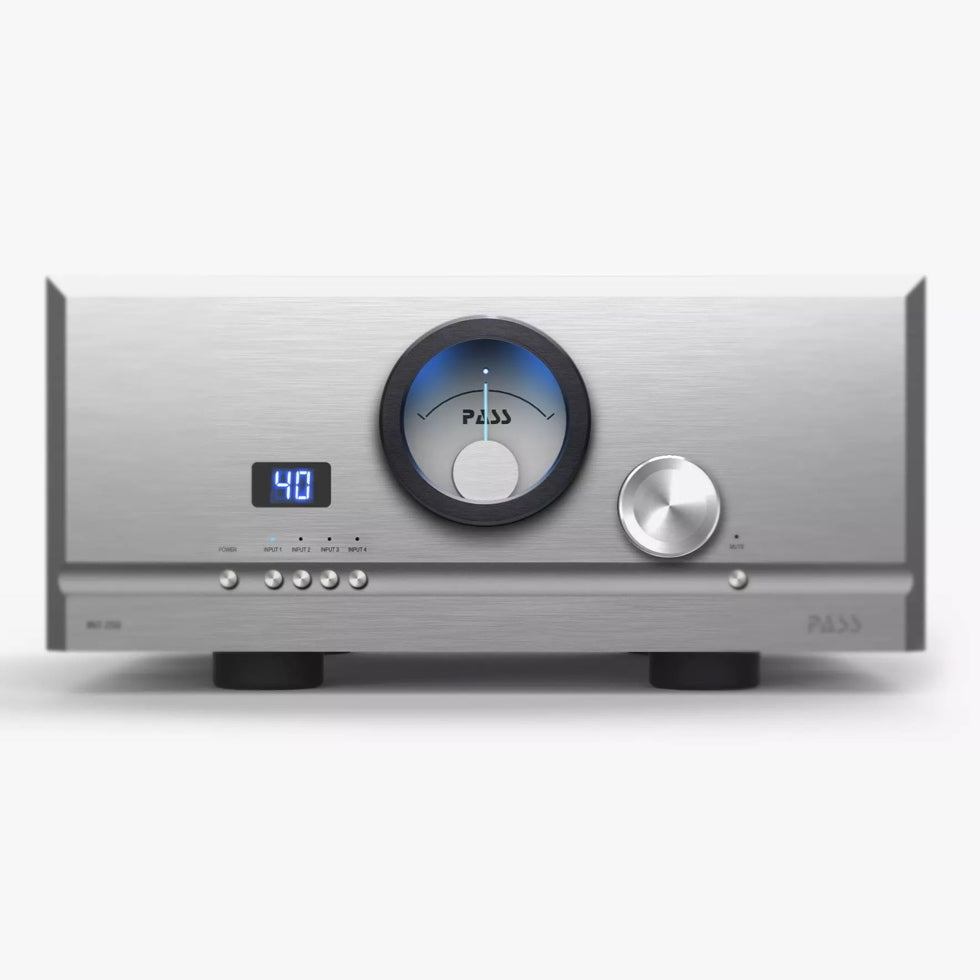

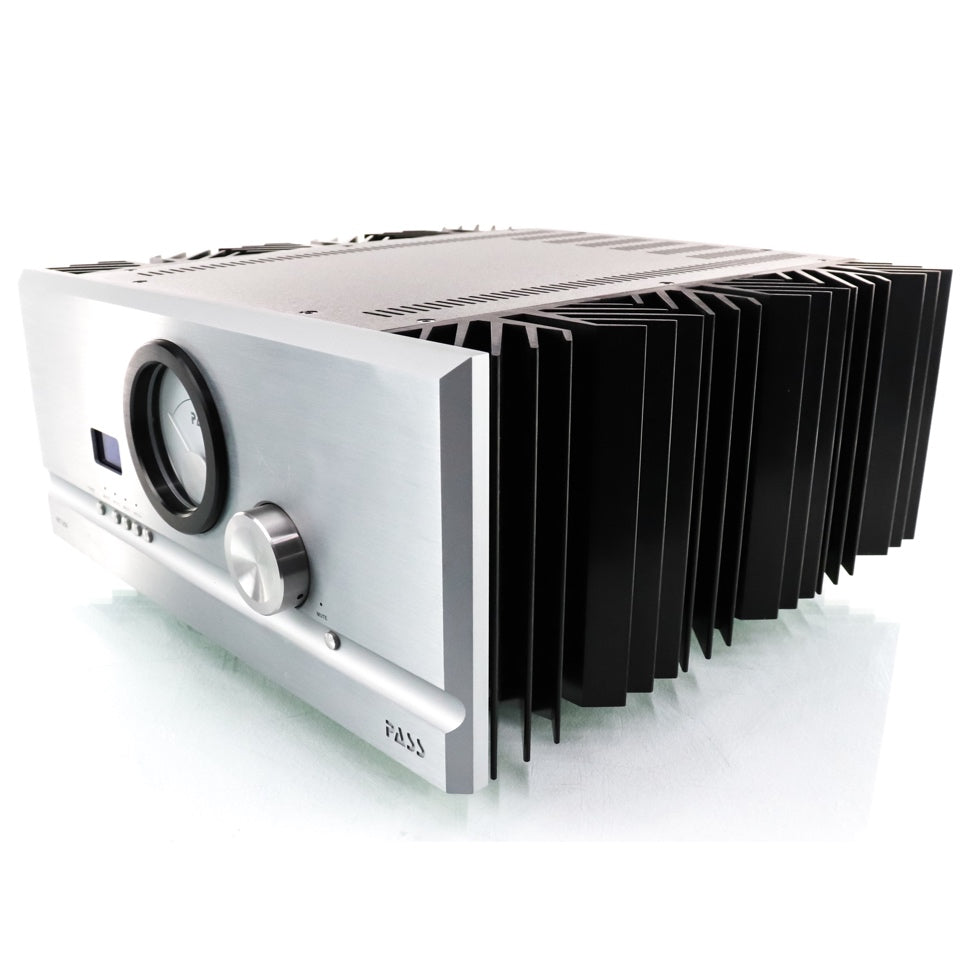

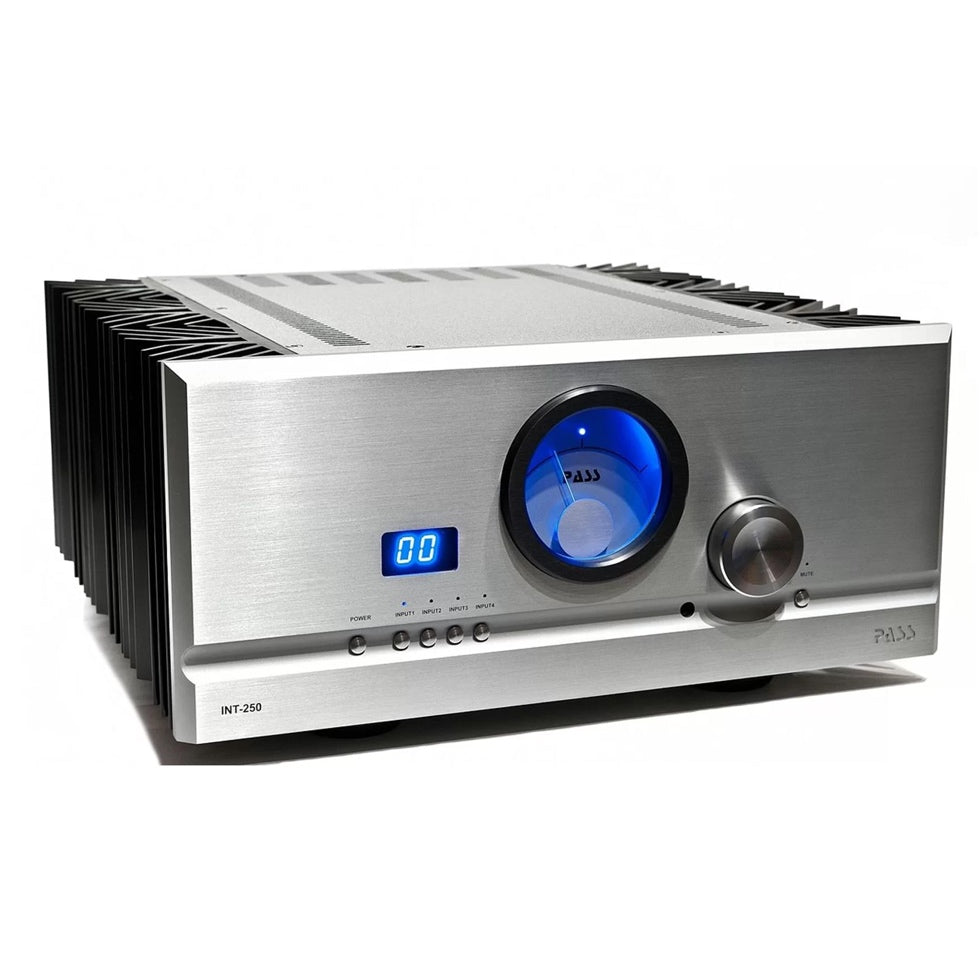

Pass Labs INT-250 Integrated Amplifier
Like the INT-60, the INT-250 utilises the synergies developed in the .8 series power amplifiers. Unlike the INT-60, however, it brings 250 watts per channel of listening pleasure.
With higher power MOSFETs and more of them, the INT-250 drives large, demanding and relatively inefficient loudspeakers at higher volumes without batting an eyelash, singing beautifully. Just incredible music from one component.
The Bottom Line: Pass Labs’ integrated amplifiers are second to none.
Audiophiles, serious Audiophiles, have not considered an integrated amplifier as worthy product for 30+ years. Pass Labs has changed this paradigm, forever!
- Operational Points optimized for higher wattage requirements
- Greater Versatility
- Stable into any conceivable load
- Spectacular with difficult loads.
The new INT-250 builds on the point 8 series power supply and output stages. It uses the same efficient toroidal design in the power supply with both an electrostatic and Mu-metal shield along with vacuum impregnating and epoxy fill. This gives them a very quiet transformer both electrically and mechanically. The power supply circuitry itself is also lower noise and has additional filtering, a little more complicated but worth it.
The INT-250 uses a simplified preamp and volume control circuit that gives you sixty three 1 dB steps with lower noise and distortion while removing some signal path parts.
Overall, this creates a very good "one-box" option for many audiophiles and is capable of driving larger, less efficient loudspeakers.
| Class | : | AB |
| Type | : | Stereo |

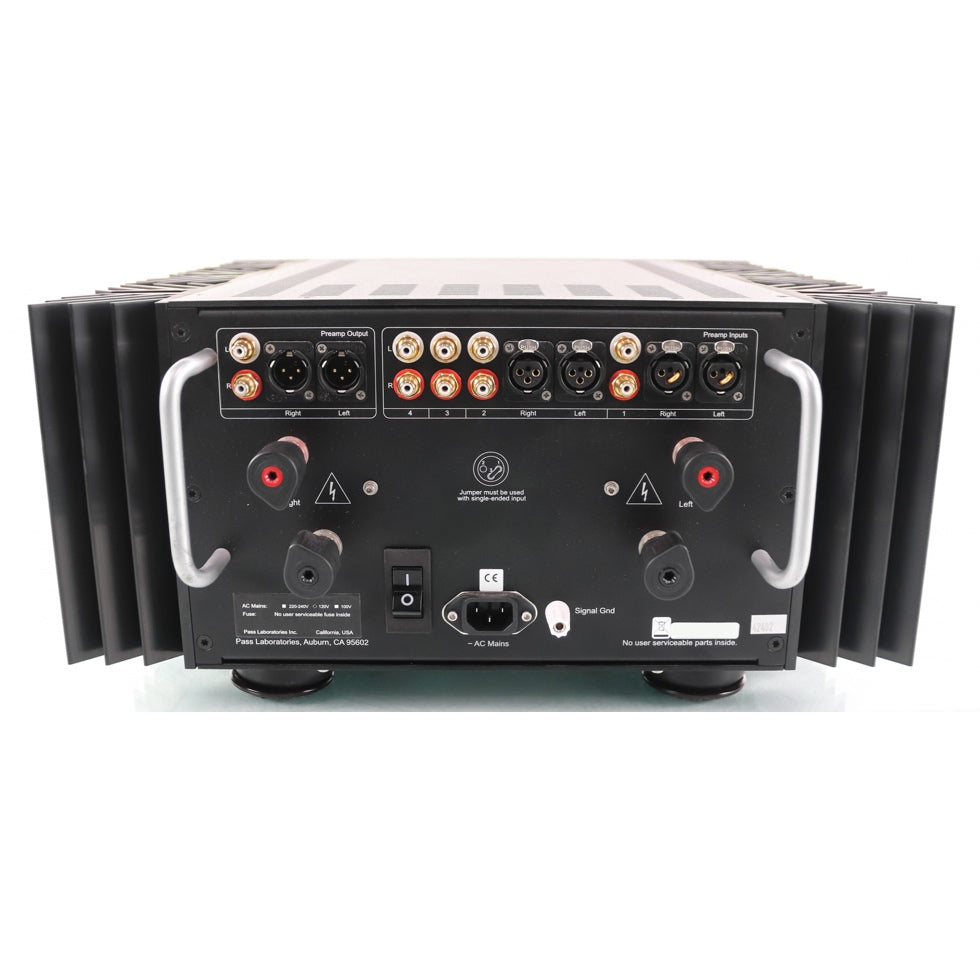

| Inputs | : | Four(4) 2 XLR/RCA + 2 RCA |
| Gain | : | 30/36 dB |
| Output Power | : | 250 Watts rms @ 8 Ω |
| : | 500 Watts rms @ 4 Ω | |
| Distortion | : | 1% @ 250 Watts, 8 Ω, 1 KHz |
| Frequency Response | : | -6 dB @ 80 KHz |
| Residual Noise | : | < 250 uV output, unweighted 20 to 20 KHz |
| Damping Factor | : | 150 |
| Input Impedance | : | 45 KΩ |
| Idle Power | : | ~3 Amps @ 120 VAC |
| Remote | : | Yes |
| Power Output / ch (8Ω) | : | 250 |
| Power Consumption | : | 450 W |
| Standby Power Consumption | : | <1 W |
| Dimensions | : | 49 x 56 x 23 cm (WxDxH) |
| Weight | : | 48 Kg |
