Metronome DSC Mini D/A Converter

Metronome DSC Mini D/A Converter

The DSC Mini is the smallest converter in the DS range in the Métronome portfolio. It will be discreet in your installation but will defy all competition.

The DSC mini is a versatile converter that can be connected to any source, although it will perform best when paired with the DSS 2.

Very stylish, compact, exceptionally well built and sublime sound.

Review by Sempre Audio here

View full details
MORE INFORMATION

Receiving the native I²S signal from the DSS 2, the DSC mini is the ideal complement for converting music files of all formats, up to DSD256.

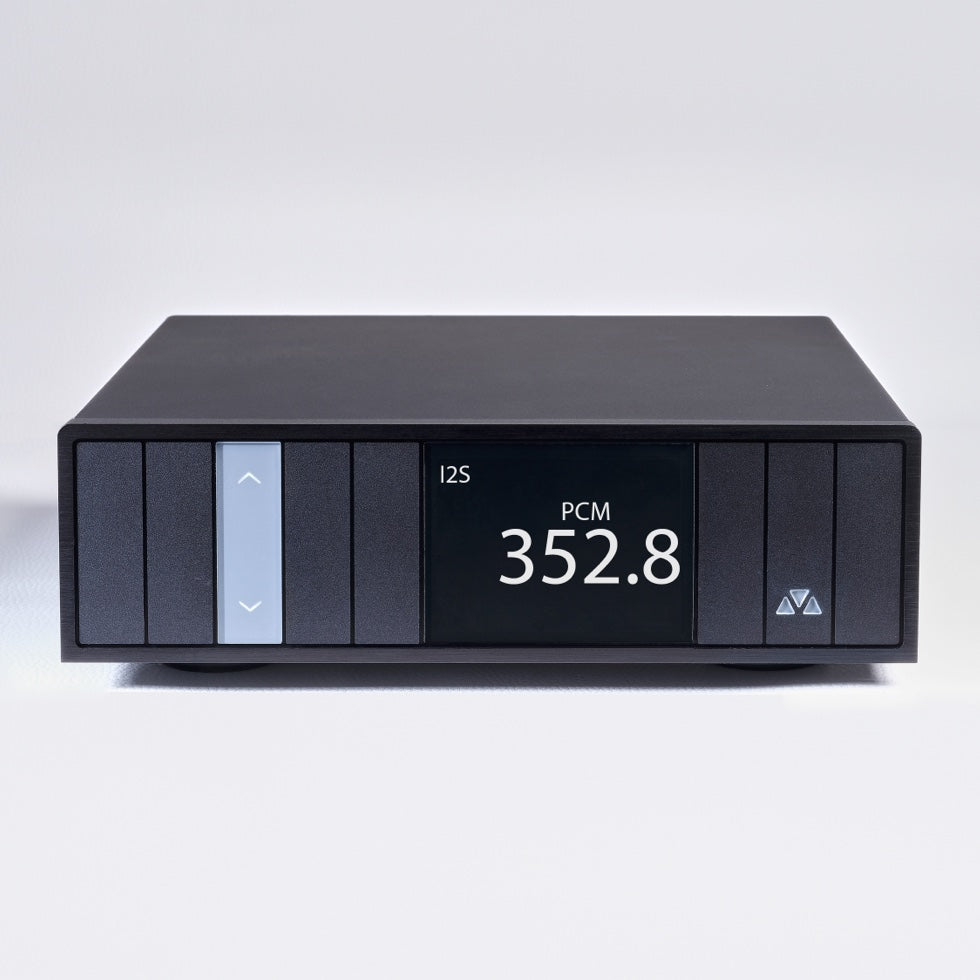

The DSC mini’s screen allows you to change the input connection and displays the sampling frequency of the currently playing track.

Adopting the design of the DS range, but smaller in size, it will integrate harmoniously to your system and will be forgotten thanks to its robustness and endurance.

A selection of top-quality electronic components and a strict routing discipline. Hand-soldered components and devices are used and are assembled in their workshop by Métronome technicians.

DSC Mini is made exclusively from high quality materials. The chassis is made of steel with a solid aluminIum front panel.

Available in black and silver finishes.
SPECIFICATIONS
Conversion Processors

Reference
ES9026PRO
Range
High-End
THD+N
-110 dB
Dynamic Range
S/N 124 dB
Digital Inputs

S/P DIF
PCM: 44.1 to 384 kHz / 32 bits

DSD: DSD64 to DSD128 DoP
AES / EBU
PCM: 44.1 to 384 kHz / 32 bits

DSD: DSD64 to DSD128 DoP
Toslink
PCM: 44.1 to 192 kHz / 32 bits

DSD: DSD64 DoP
USB
PCM: 44.1 to 384 kHz / 32 bits

DSD: DSD64 to DSD512 Native
I2S
PCM: 44.1 to 384 kHz / 32 bits

DSD: DSD64 to DSD256 Native
Analog Outputs

RCA
Output impedance: 100 Ohms

Max. output level (0dB): 3V
XLR
Output impedance: 150 Ohms

Max. output level (0dB): 3V
General Specifications

Power Consumption
15 Watts
Operating Temperature
+5°C to +35°C
Operating Humidity
5% to 90%
Display

Size
8.89 cm
Resolution
320 x 240
Touchscreen
No
Dimensions
25 x 25 x 7 cm (WxDxH)
Weight
4.8 Kg
