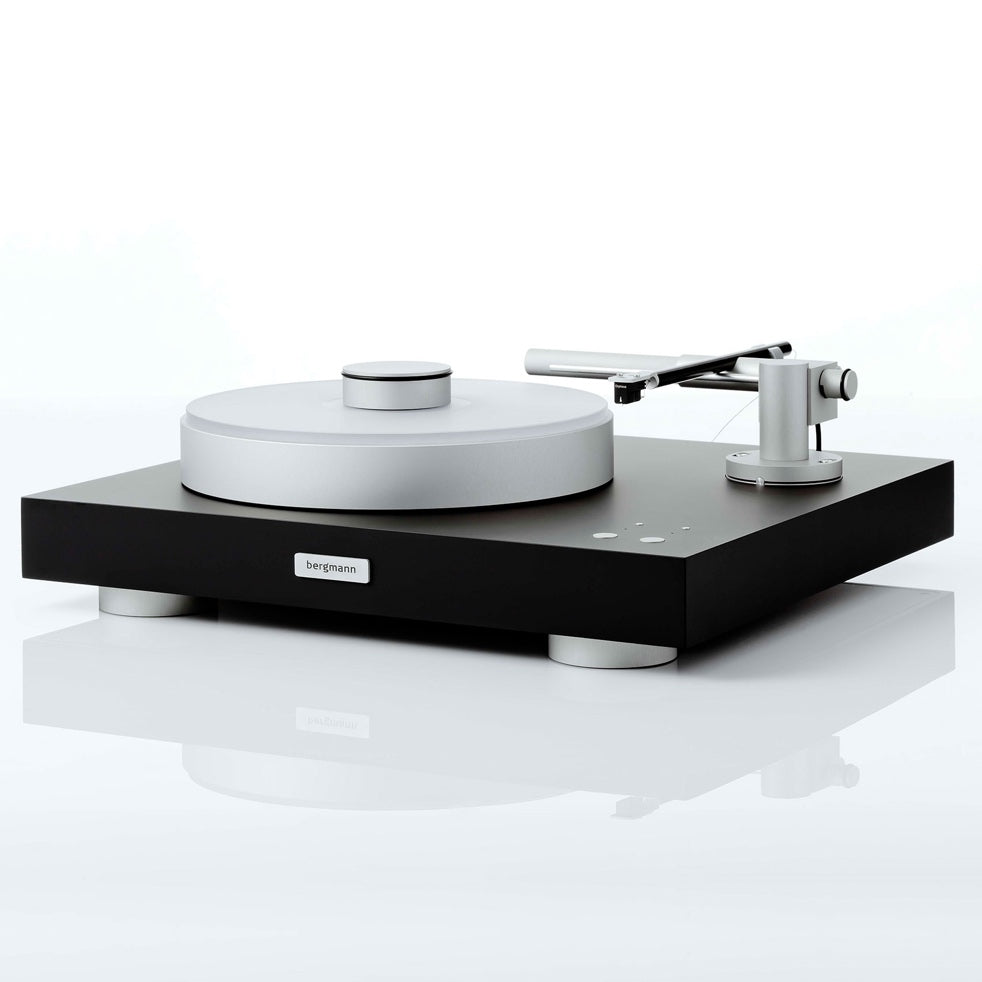

Bergmann Audio Magne Turntable

ENQUIRE NOW

The platter - centred by a spindle floats on an air film. The Magne turntable system is extremely simple to adjust and operate.

The Air supply is equipped with condense- and dust-filters and reservoirs to obtain a dry, clean and smooth airflow. Furthermore the air supply is so noiseless that it can be placed in the listening room.

Magne Turntable system – High-end Air-bearing turntable and lineair tracking air-bearing tonearm.

Air Supply

The air pump must deliver an even, clean and dry air flow.

The impulses from the pump are absorbed in an encapsulated reservoir. This results in an even airflow to the air bearing and tonearm. The air supply is mounted with a filter which prevents dust particles in entering the system. This filter is replaceable when necessary.

The pump is an oil free, long life unit, which do not require much maintenance.

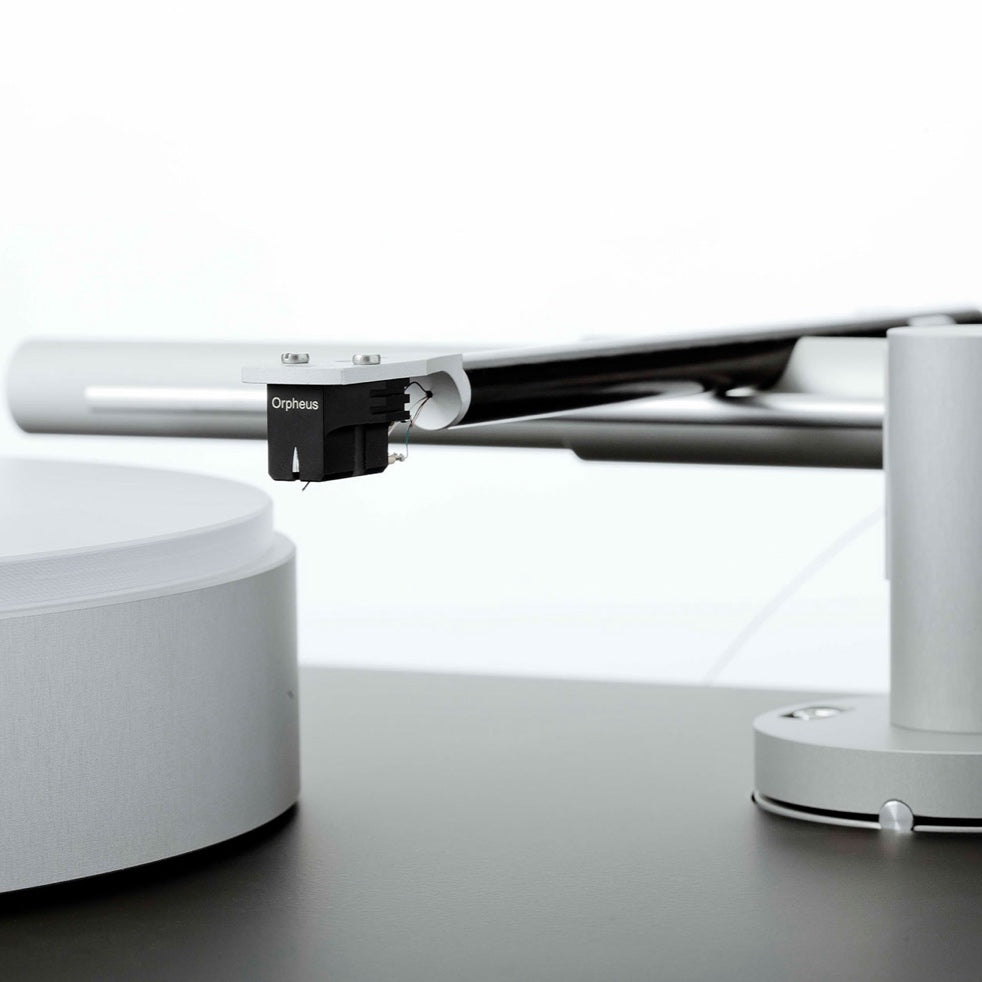

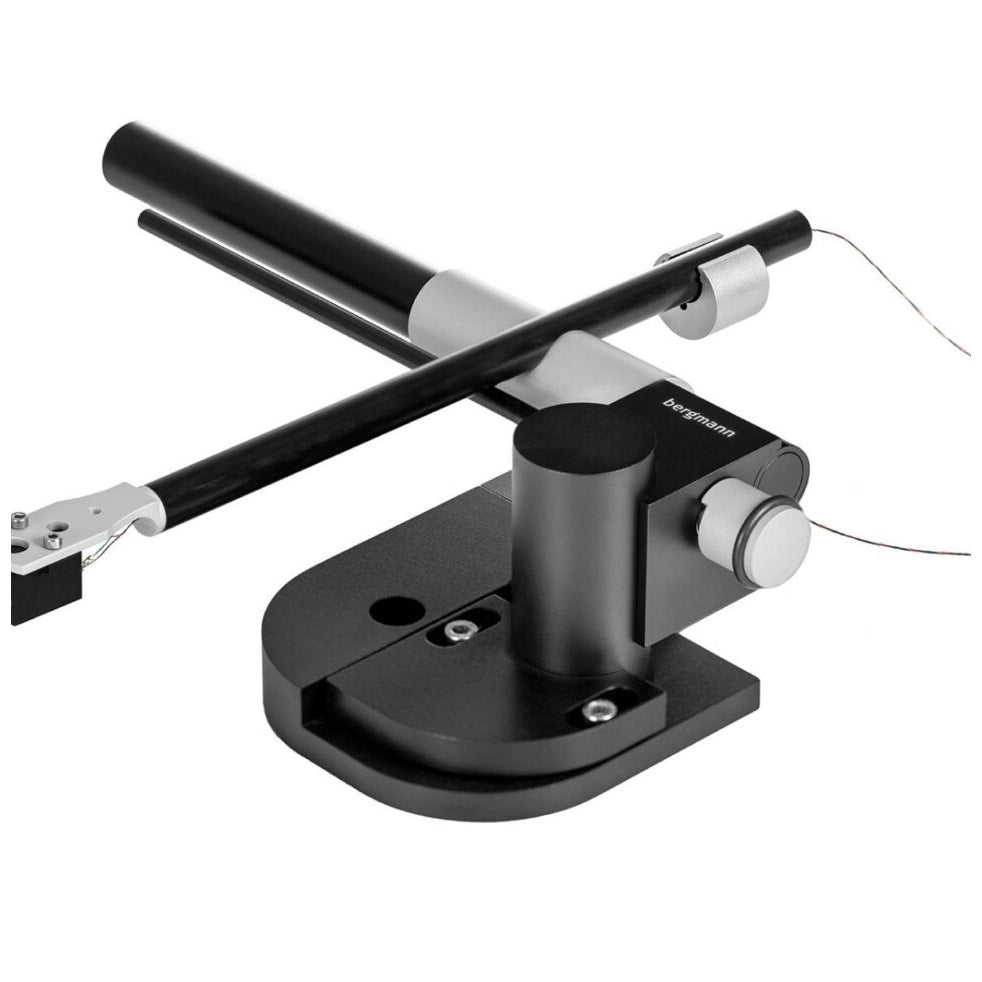

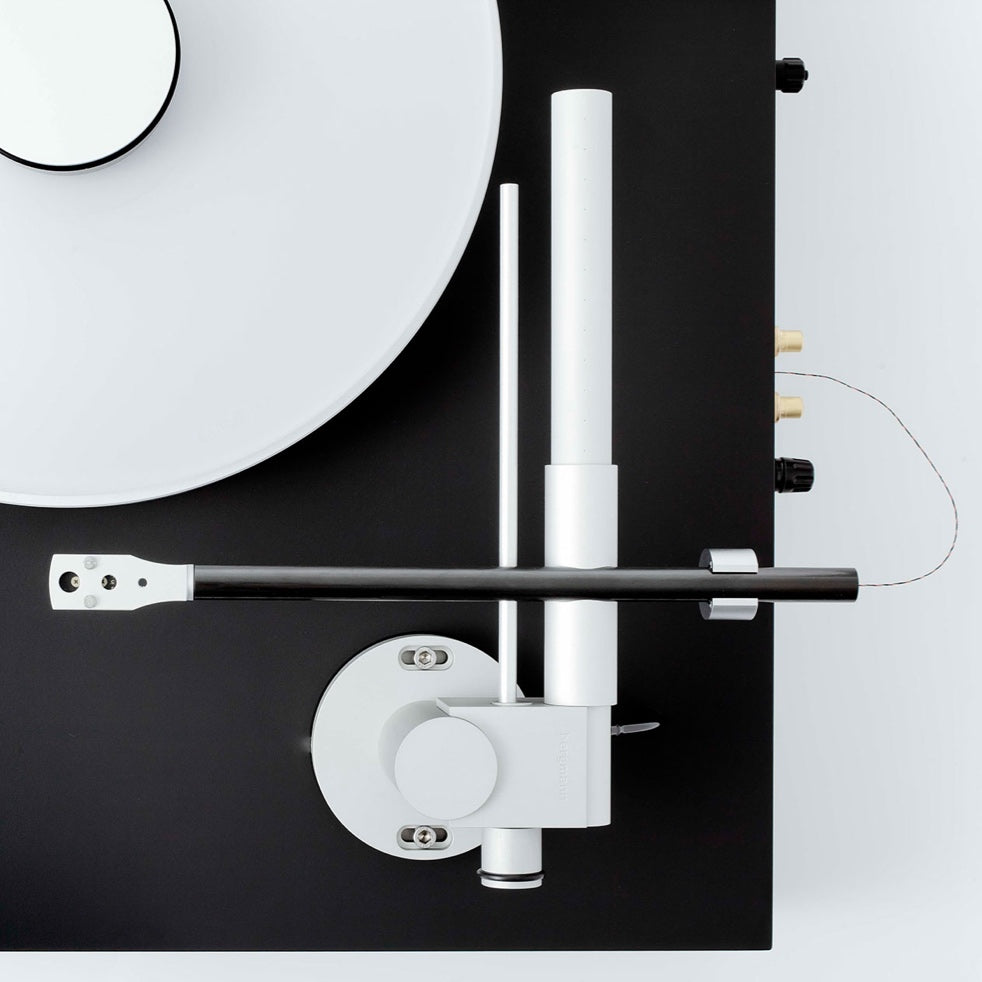

Linear Tracking Air-bearing Tonearm

In the design of the tonearm, Bermann Audio stay to their idea of simplicity: As few parts and assemblies as possible to avoid resonances.

The armtube is traditional for Bergmann tonearms - well considered construction in few parts made as a double tube construction with damping in between the tubes. All parts are assembled by 2 component epoxy – simple and vibration free design to secure as pure and coherent reproduction.

The tonearm wire is- as usual in Bergmann tonearms- in one length from cartridge clips to the connector. These minimalistic design features makes an optimum signal transmission, from the stylus tip to the phono stage and leads to an unmatched transparent and spaciousness sound stage with the right timbre and musical informations.

Counterweight is decoupled from the arm - again to avoid any resonances.

In addition, the set-up of the tangential tonearm is entirely uncomplicated and probably the easiest tonearm to set up.

Available Finishes

  • Black Velvet / Silver
  • White Velvet / Black

Magne Turntable System

Magne means “strength”. In Nordic mythology Magne is the super baby, son of Thor, the God of Thunder, and when he is three days old he is so strong that he can lift a dead giant away from his father who is pinned underneath. Magne is one of the few Gods who survive Ragnerok, the nordic armageddon, and rebuilds the new world.

Turntable

:

Air-bearing design.


:

Record flatten by a clamp.


:

Tacho Motor.


:

High precision feedback control system.


:

Speed accuracy 0.003%.


:

33 & 45 rpm.


:

Belt Driven.

Plinth

:

Polymer material/aluminium.

Platter/Bearing

:

Aluminium platter/Polycarbonate mat, supported by air, and centered by a hard anodized spindel/hardwearing low friction polymer bearing.

Platter Weight

:

5.5 Kg.

Sub Platter

:

Aluminium.

Weight

:

1.5 Kg.

Dimensions

:

49.5 x 44 x 16.5 cm (WxDxH).

Total Weight

:

20 Kg.

Tonearm

:

Linear Tracking Air-bearing tonearm.


:

Aluminium/Carbon.


:

Armtube damped inside.


:

Counter weight decoupled from armtube.

Wire

:

Pure Copper Litz.

Clips

:

Gold Plated Copper.

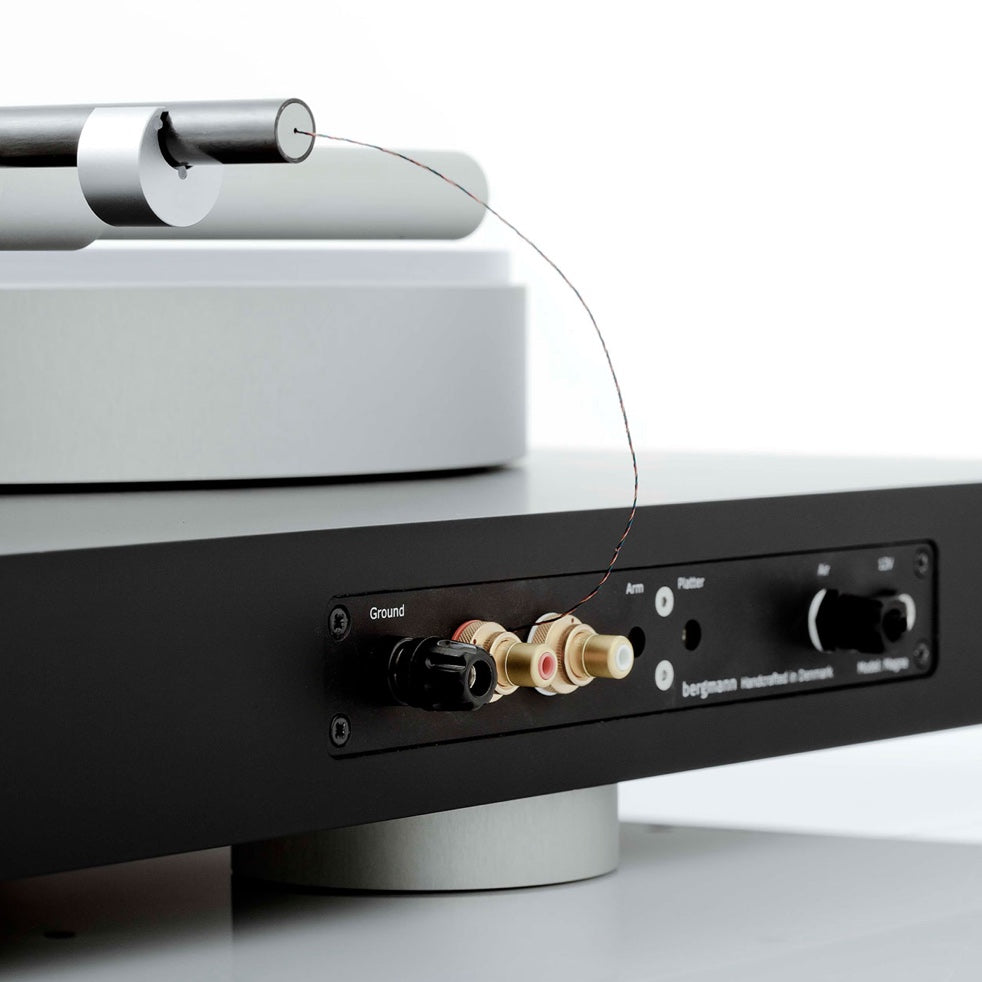

Connectors

:

Gold Plated RCA, XLR, DIN.

Effective Mass

:

11g.

Air Supply

:

Silent, clean, dry and smooth airflow.


:

Replaceable dust filter.

Dimensions

:

19.5 x 37 x 17.5 cm (WxDx).

Weight

:

8.3 Kg.
