AudioVector

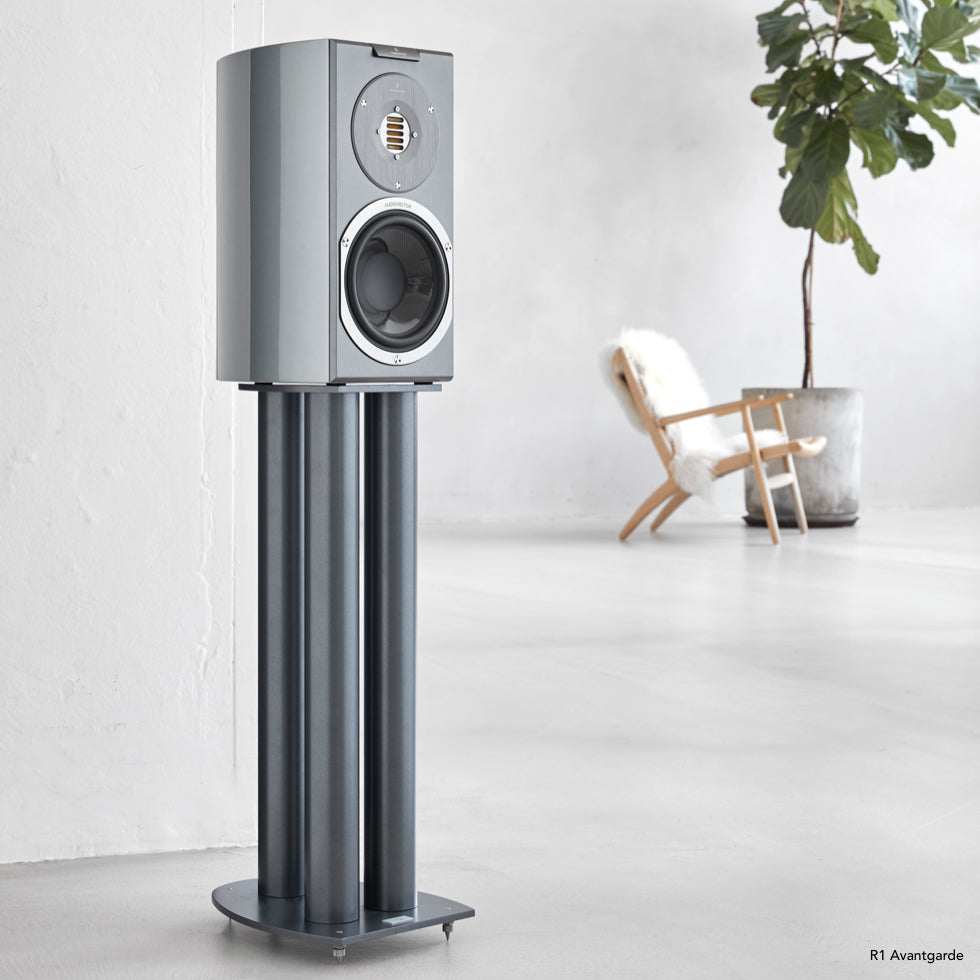

Audiovector R1 Bookshelf / Standmount Speakers
The R 1 Series delivers a speedy response with great detail and dynamics. The design handles of percussions and bass notes easy in a clean, nimble and natural way.
These little wonders leave the listener wanting more.
Audiovector Stand
The Audiovector Stand has been designed to route unwanted vibration away from the speaker in order to get the cleanest sound quality. The stand sits on adjustable 8 mm steel spikes, which help reduce unwanted vibration.

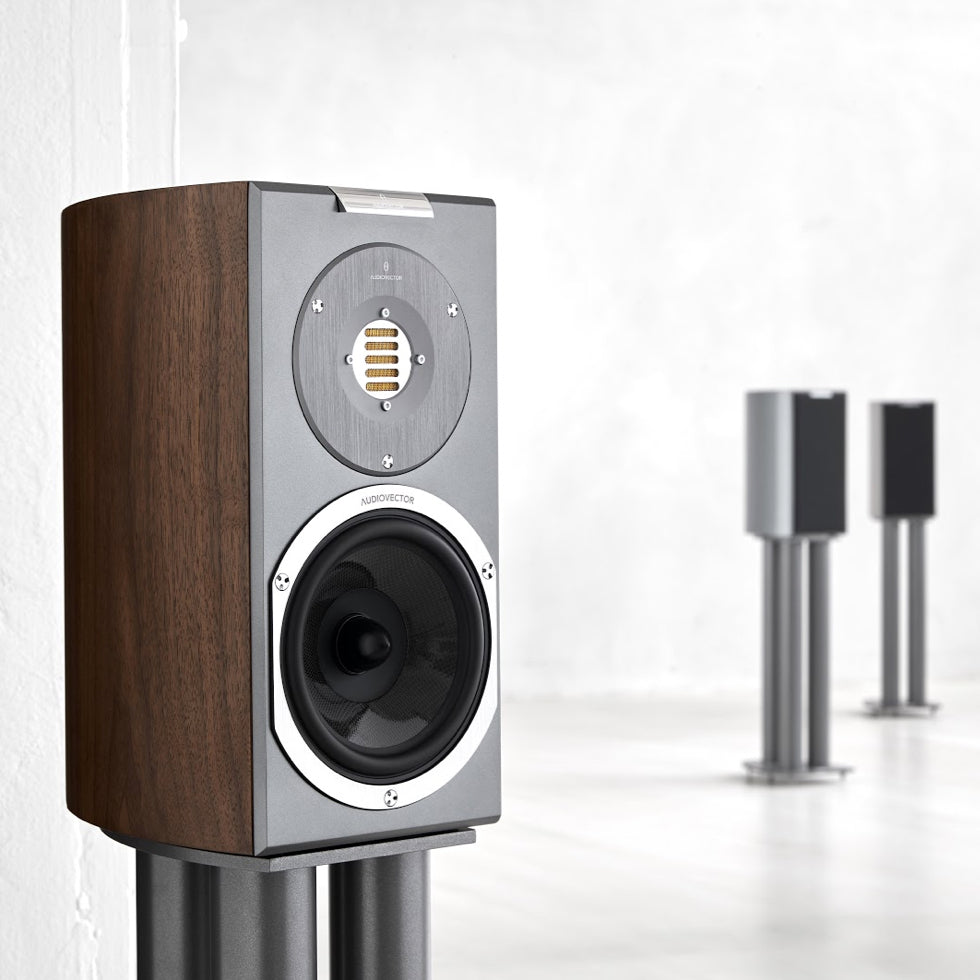

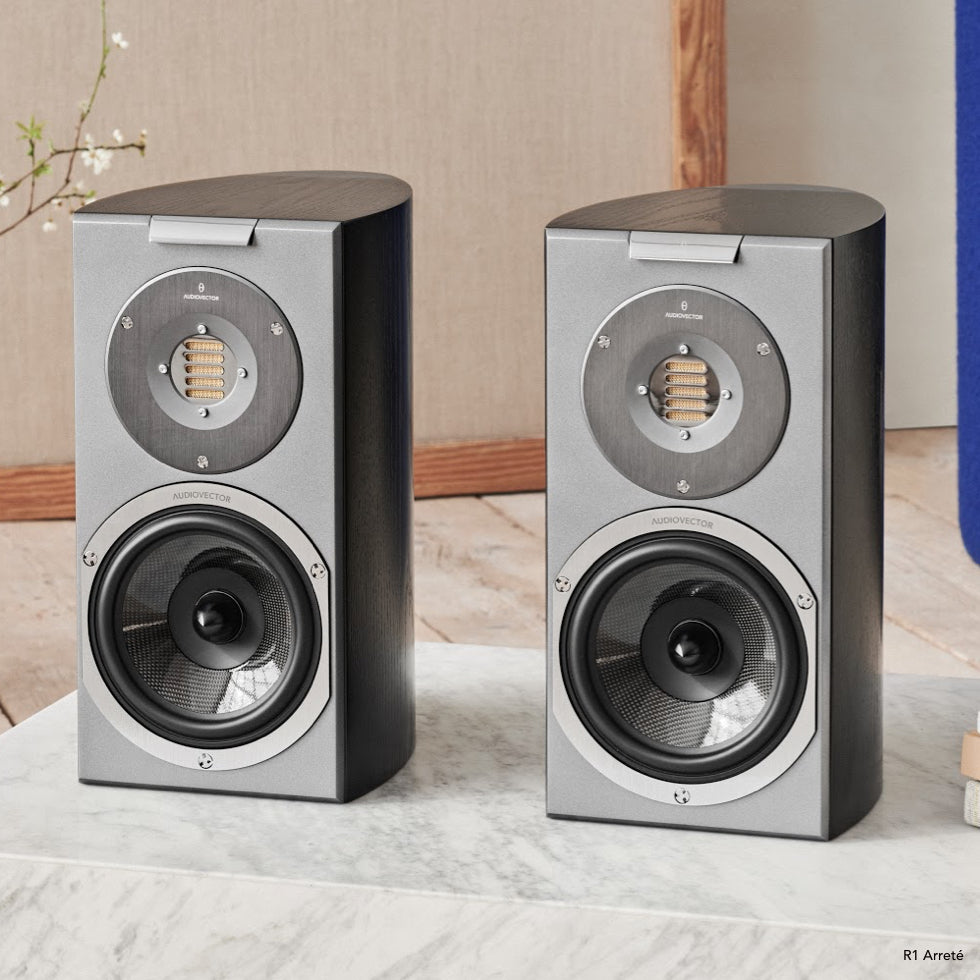

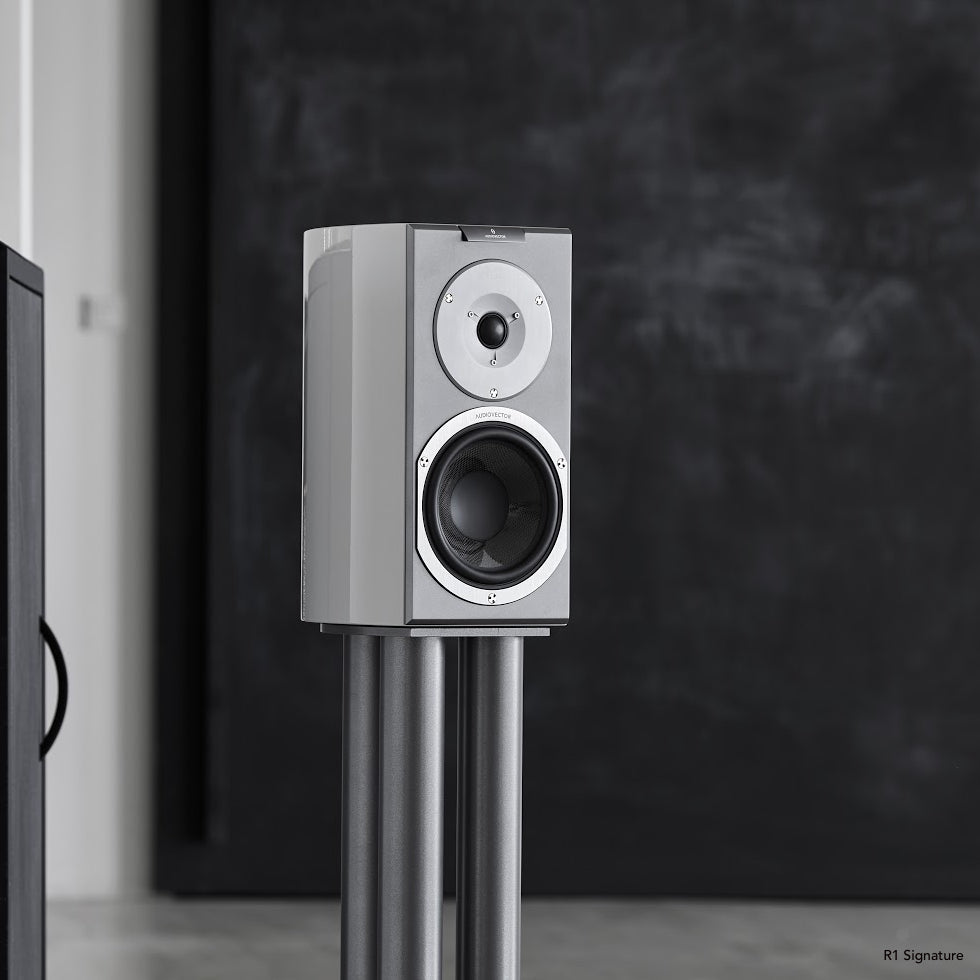

AudioVector R 1 - Arreté, Avantgarde & Signature
Compact High-End Performers
These 2-way, rear-ported stand mounters, use a non-parallel tear drop design to minimize internal standing waves. Using many concepts derived from their bigger siblings, R 6 & R 3. The R 1 Series delivers a precise soundstage with nerve and punch belying their actual size. These small wonders will leave the listener wanting for more.
In order to take full advantage of the AudioVector tweeters and the hand assembled mid/bass drivers made with Aramid Composite membranes, the front baffle is narrow. The result is a smooth, precise sound diffusion – an ‘out of the box’ sound that keeps unwanted diffraction distortion to an absolute minimum.

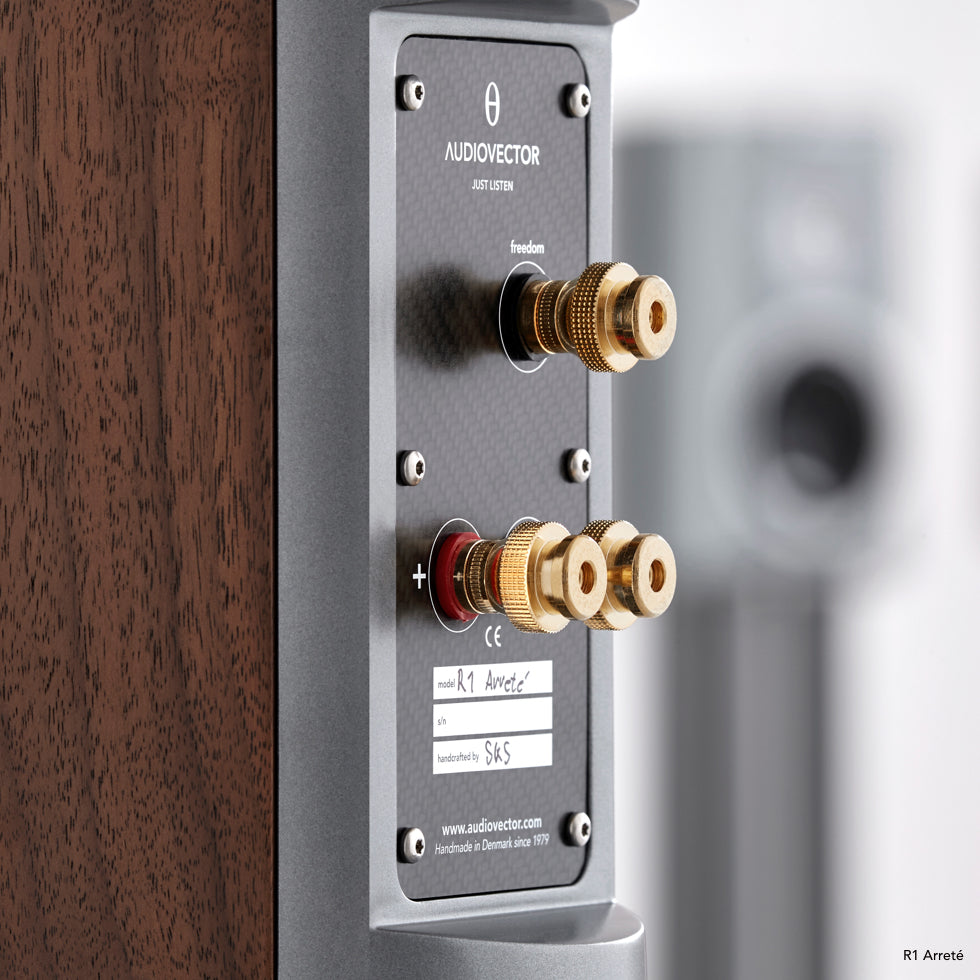

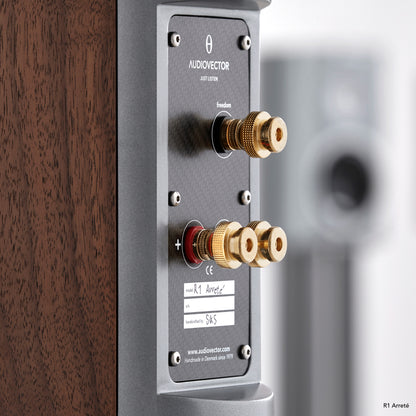

Audiovector Freedom is a new and revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currents running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distribution unit. Contrary to conventional knowledge, these currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting the speakers to earth/ground, they achieve a clean, very accurate, significantly more realistic sound with a low noise floor. Arreté models only.
Color & Veneers
AudioVector uses only carefully selected real wood veneers.
Standard Matte Finish:
- African Rosewood
- Black Ash
- Italian Walnut
- White Silk
- Black Cloth Grille Included
- Custom Piano Colors on Request
- Stand Not Included
AudioVector Stand
AudioVector stand mount speakers deserve the very best base to allow them to attain their full sonic potential. This is why they have designed the Audiovector stand, a good sounding stand is vital for sound quality and can never be underestimated for performance potential.
The Audiovector stand has been engineered to be very stiff and stable. It is made from solid steel and it has been painted in a cool yet attractive gunmetal finish.
- Height without Spikes - 59.5 cm
- Depth - 29.5 cm
- Front Width - 19.5 cm
- Max Width - 23 cm
Signature | Avantgarde | Arreté | ||
Frequency Response | : | 42 – 28 kHz | 40 – 53 kHz | 38 – 53 kHz |
Sensitivity | : | 87 dB/W/m | 87 dB/W/m | 87 dB/W/m |
Impedance | : | 8Ω | 8Ω | 8Ω |
Power Handling | : | 180 W | 160 W | 200 W |
X-over Frequencies | : | 3100 Hz | 3000 Hz | 2900 Hz |
Principle | : | 2-way | 2-way | 2-way |
Bass system | : | Bass Reflex | Bass Reflex | Bass Reflex |
Bass / Mid Drivers | : | 6.5“ Carbon | 6.5“ Carbon | 6.5“ Carbon |
Treble Driver | : | R Evotech | R AMT | R AMT Arreté |
Dimension (WxWxD) | : | 37 x 19,6 x 29 cm | 37 x 19,6 x 29 cm | 37 x 19,6 x 29 cm |
R AMT Arreté | : | - | - | X |
R AMT | : | - | X | - |
R Evotech Soft Dome | : | X | - | |
AudioVector Carbon Drivers | : | X | X | X |
Floor Bass Reflex | : | X | X | X |
Titanium Technology Coils | : | X | X | X |
DFF Cross-Over Technology | : | X | X | X |
Laminate Baffles | : | X | X | X |
Non Parallel Surfaces | : | X | X | X |
Nanopore Damping | : | - | - | X |
Carbon Terminal Plate | : | - | - | X |
IUC Individual Upgrade | : | X | X | X |
LCC Low Compression | : | X | X | X |
SEC Soundstage Enhancement | : | X | X | X |
NES No Energy Storage | : | X | X | X |
NCS Natural Crystal Structure | : | - | - | X |
FGC Freedom® Grounding | : | - | - | X |
