Advance Paris X-A220 EVO Power Amplifier
Mono Power Amplifier for high-end HiFi and home theater systems.
Advance Paris' technical expertise combined with their "audiophile" circuit design approach, enables them to achieve top-level performance at a competitive price-point not usually associated with high-end audio.
At under R100 000 for a pair, the performance is not only hard to believe, it's almost unfair!
Advane Paris's new X-A220EVO monophonic power amplifier delivers 220W of power (at 8 ohms).
A pair of X-A220 Evo combined with the X-P700 pre-amplifier forms an highly musical Hi-Fi system at an exceptional value.
Engineering expertise in the design of Audio Paris's circuits allows them to achieve high level performance at a competitive price.

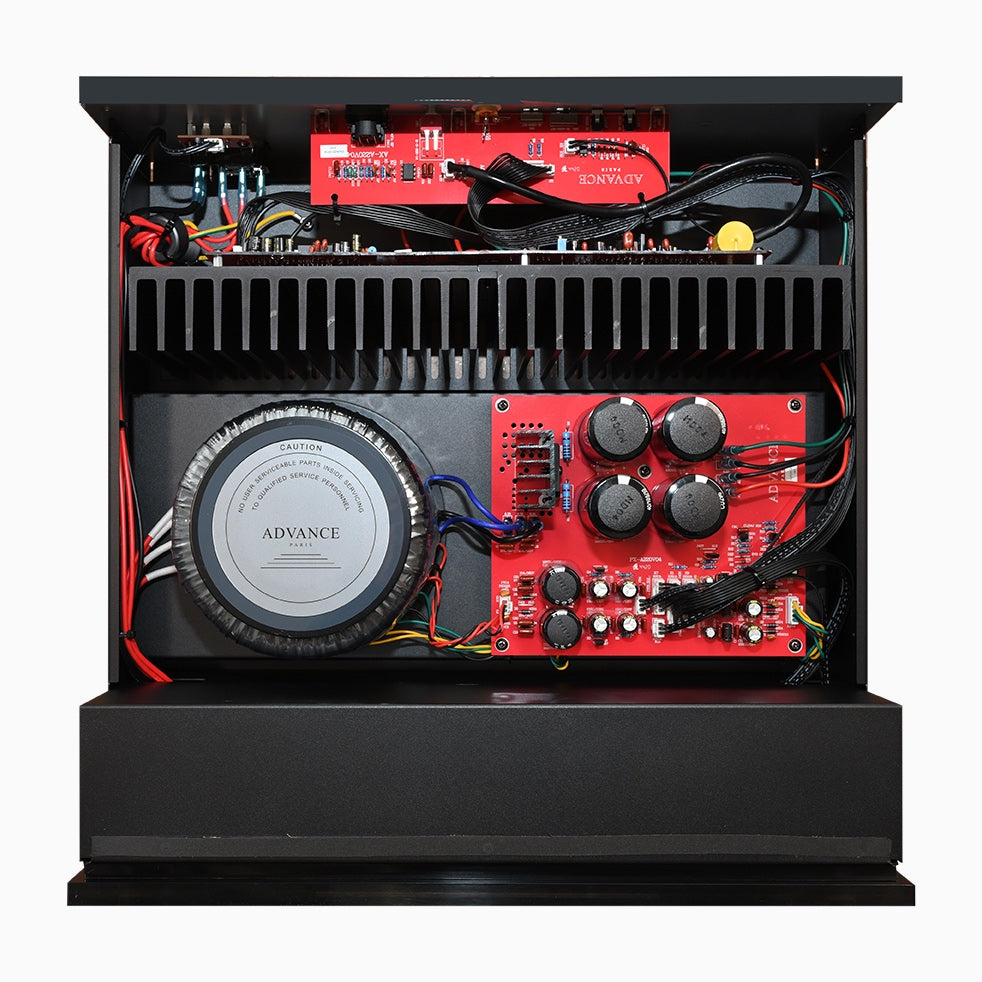

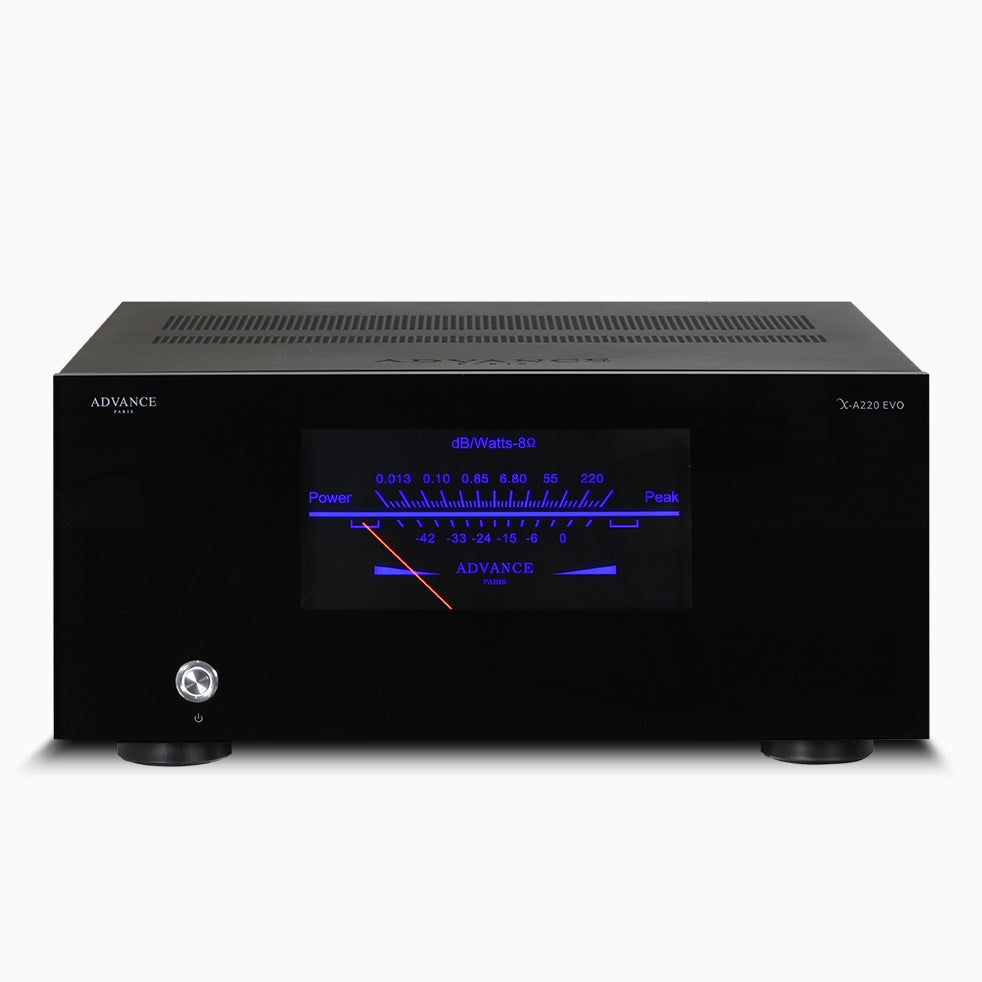

Construction: The steel frames provide a stable foundation. The addition of a methacrylate front panel results in a beautiful looking design showcasing the prominent Vu Meter. The interior layout is strategic and compartmentalised. This judicious arrangement of the various sub-assemblies and choice of quality components, soldered on separate PCBs and partitioned by function provide the basis for excellent sound quality.

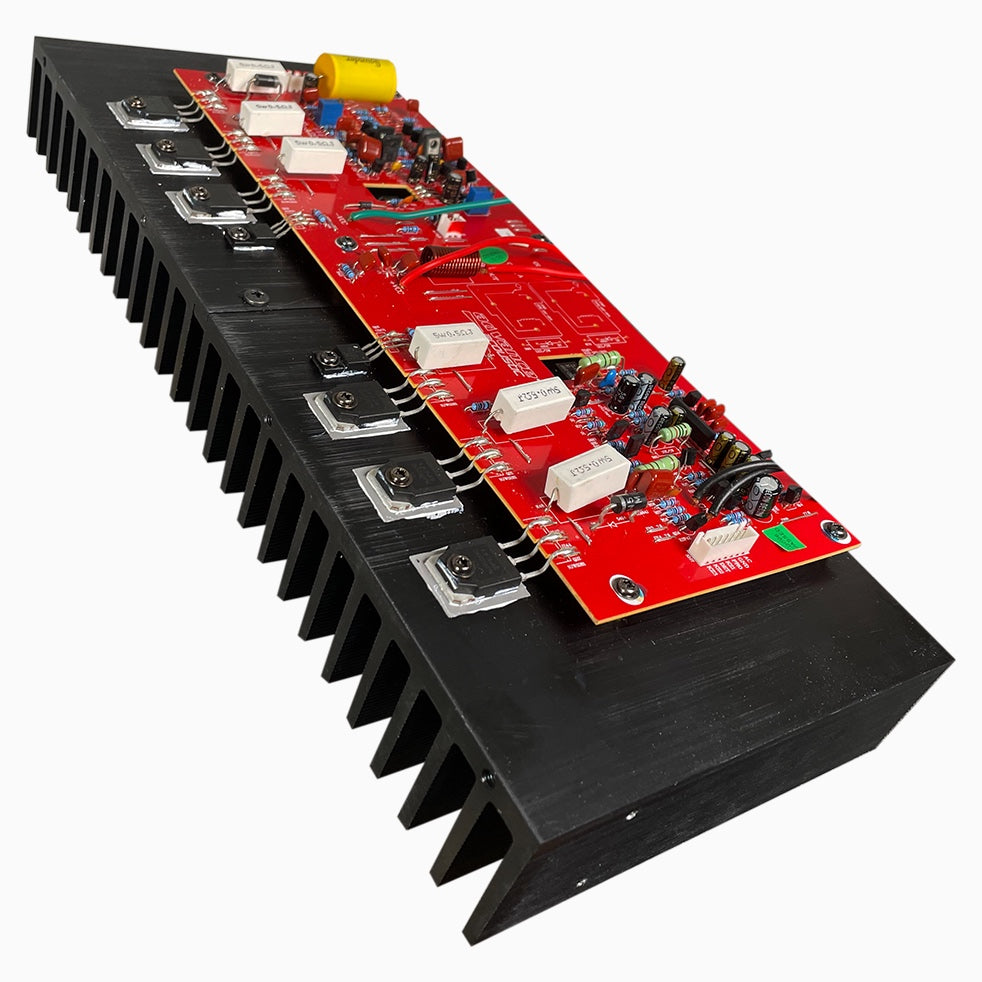

The X-A220EVO's substantial height follows the requirement of the generously sized power transistor heatsink.
The X-A220EVO has a 700 VA toroidal transformer. After rectification, four big 10uF capacitors smooth the direct current. The power stages call for a triple push-pull of complementary NJW80G / NJW0281G transistors, delivering up to 220W (8 ohms) in class AB.
The amplifier can operate in two modes accessible via a switch: when the High Bias function is engaged, the X-A220EVO operates in “class A” on the first Watt then automatically slides to class AB.
Output Power 8Ω | : | 1 x 220W RMS |
Output Power 4Ω | : | 1 x 350W RMS |
Bandwith | : | 10 Hz - 80 kHz |
Distortion | : | <0,08% |
Signal to Noise Ratio | : | >100 dB |
Channel Separation | : | >80 dB |
Input Impedance - Unbalanced | : | 32 KΩ |
Input Impedance - Balanced | : | 38 KΩ |
Mains Voltage | : | 115 - 230V |
Standby Consumption | : | <0,5 W |
Consumption (Max) | : | 500 W |
Transformer Power | : | 700 W |
Transformer | : | Toroidal |
Product Type | : | Power Block |
VU-Meter | : | Yes |
Dimensions | : | 43 x 45 x 20 cm (WxDxH) |
Net Weight | : | 21 Kg |
