Advance Paris ACD Apex CD Player

Advance Paris ACD Apex CD Player

The ACD APEX is the perfect partner for the new APEX integrated amplifiers and your CD collection.

It incorporates micro-tubes to give the analogue outputs (RCA and XLR) all the musicality of the original recordings.

View full details
MORE INFORMATION

The ACD Apex CD player has optical and coaxial digital outputs if you want to convert the digital signal directly into your integrated amplifier.

To celebrate the brand’s 30th anniversary, Advance Paris is presenting a special limited edition 30TH EDITION with a black finish.

Key Features

• CD player with analogue tube outputs offering warm sound and authentic musicality.
• Raytheon 5744 tubes: extremely robust and durable micro-tubes originally developed for military use, combining power and refined listening.
• Extensive connectivity: RCA, XLR, TOSLINK optical and RCA coaxial digital, front panel USB audio.

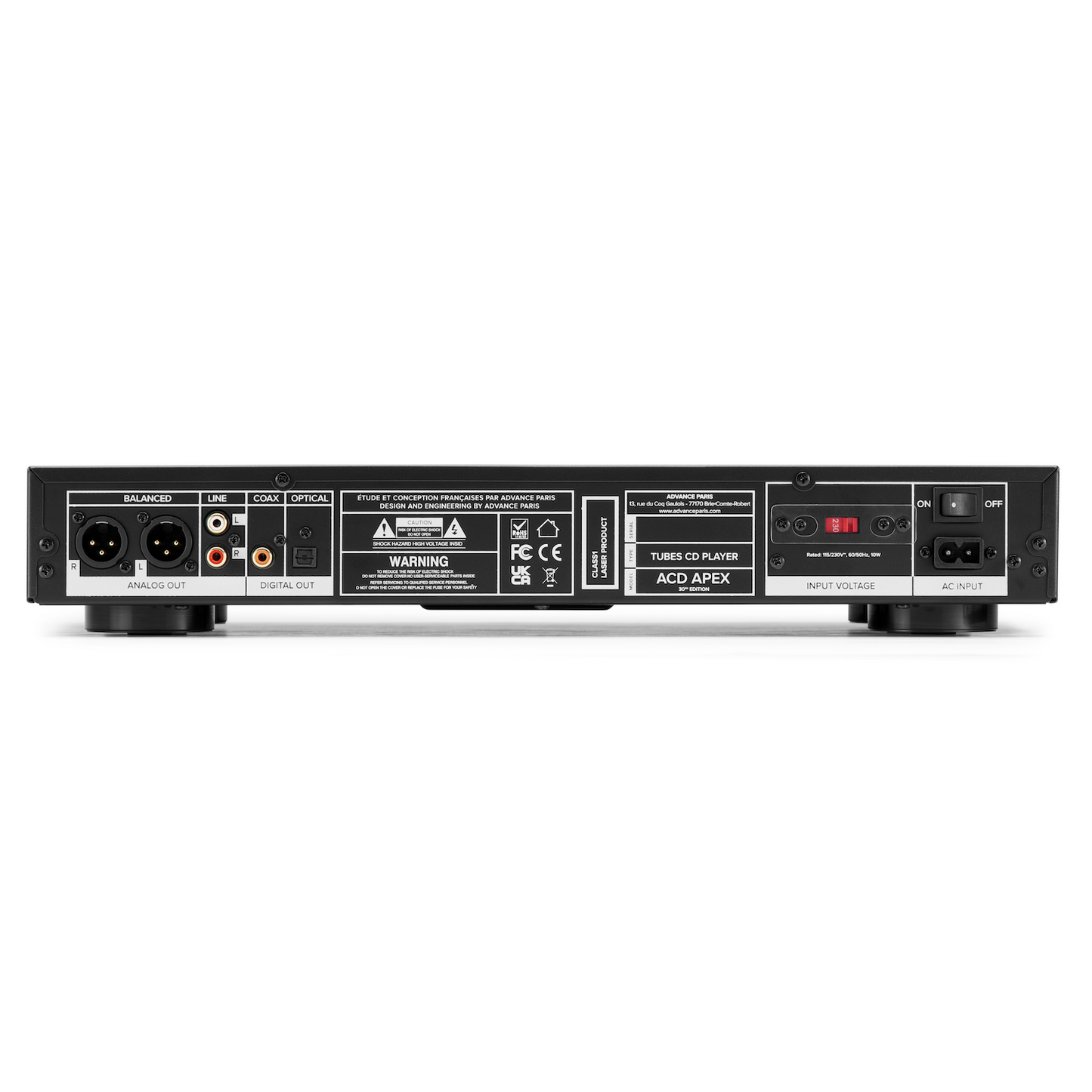

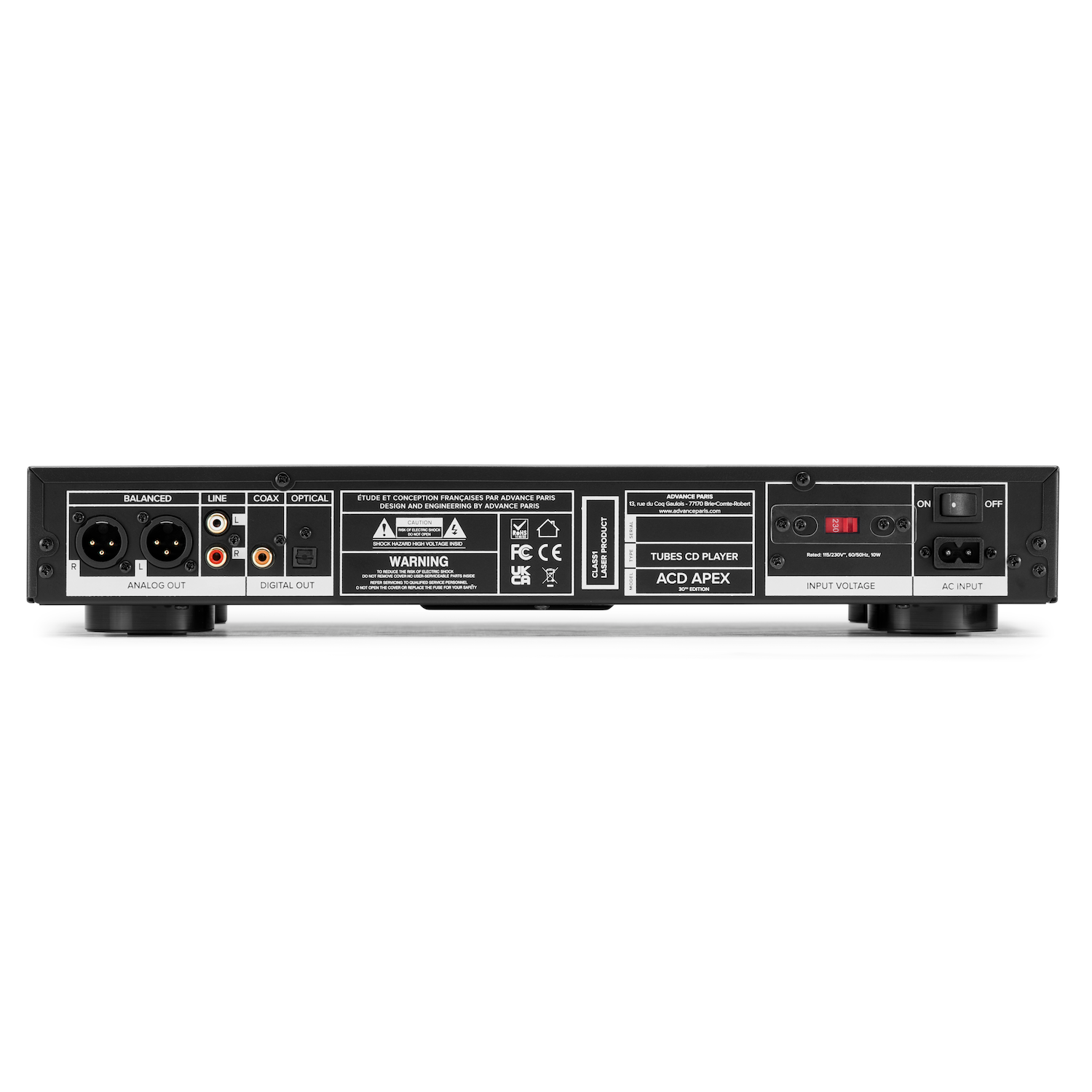

Connections & Sources

• 1 Balanced XLR analogue output (tubes).
• 1 Unbalanced RCA analogue output (tubes).
• 1 TOSLINK optical digital output.
• 1 RCA coaxial digital output.
• 1 front USB input for USB stick (MP3 and FLAC 16bit - 44kHz).

Functions & Settings

• Playback mode: track repeat, album repeat, random.
• CD-Text: Artist/album/song data.
• Playback time display: elapsed/remaining/track/album.
• 115V/230V voltage selector.
• Infrared remote control compatible with APEX A8, APE-XA10 and APEX A12 amplifiers.

SPECIFICATIONS
ANALOGUE RCA OUTPUT

THD+N Distortion
0.005% (1kHz @ 0dB FS)
Signal-to-noise Ratio
-106 dBrA (1kHz @0dB FS)
Frequency Response (+/-0.4dB)
20Hz - 20 kHz
Maximum Output Voltage
2V RMS
ANALOGUE XLR OUTPUT

THD+N Distortion
0,0055% (1kHz @ 0dB FS)
Signal-to-noise Ratio
-105 dBrA (1kHz @0dB FS)
Frequency Response (+/-0.4dB)
20Hz - 20 kHz
Maximum Output Voltage
4V RMS
DAC
WM8761
Digital Outputs
Optique TOSLINK

Coaxial RCA
Tubes for Analogue Outputs
RAYTHEON 5744 NOS
USB Input for USB Key
MP3 / FLAC / 16bit - 44kHz
Remote Control
Infrared, REM-19, compatible with ACD APEX, A8 APEX, A10 APEX and A12 APEX
Update
By USB key on the front port
AC Input Compatibility
115/230V 50/60Hz with switch
Product Dimensions
43 x 7.4 x 26 cm (WxHxD)
Packaging Dimensions
50.5 x 14.6 x 33.6 cm (WxHxD)
Gross Weight (kg) / Net Weight (kg)
5.1 Kg /  4.1 Kg
Model No.
ACD APEX 30TH EDITION
EAN Code
3 760 179 292 787
