Audiovector R6 Series Speakers
The R 6 models are dynamic, delicate, emotionally revealing and natural sounding speakers with great attention to detail. A rock solid and easy driven speaker that brings together impressive performance with luxury and refinement.
R 6 - Signature, Avantgarde & Arreté
A Powerful and Sophisticated Loudspeaker For The Demanding Music Lover
The R6 cabinets are assembled with thick non-resonant vacuum pressured shells and are constructed using high density hardwood (HDF) for the best possible strength and low resonance. The teardrop shape in combination with a laminated dense, strong and heavy rear baffle further reduces unwanted cabinet resonance and avoids standing waves. When assembled, the cabinets are heavily braced internally and carefully damped with strategically positioned Nano Pore damping plates.
Rather than having to buy standard drive units from even the best, most respected manufactures, AudioVector engineer's their drivers in-house and asked the finest Danish supplier to build them. This way AudioVector ensures that they can engineer their own drive units with their own crossover to form a perfect entity. To further improve realism and depth of field, the new R6 Arreté now uses a rear firing 3" midrange driver with its own dedicated crossover. The theory behind using a rear firing driver is inspired by the reference R11 Arreté and the R8 Arreté. The construction also adds a perfect measured level of midrange. Exclusively on the R6 Arreté.
The New AudioVector High Frequency Drivers
The AMT drivers (R6 Avantgarde, R6 Arreté) feature ultra-strong Neodymium magnets, lightweight precision coated mylar membranes and are mounted and decoupled from the cabinet in three points, a proprietary AudioVector concept call No Energy Storage (NES). The tweeters are open to the front and the rear, and are able to move freely due to the Soundstage Concept (SEC). All drivers are handmade in Denmark.
3" Rear Firing Midrange Driver
To further improve realism and increase the depth of field, the new R6 Arreté now uses a rear firing 3" midrange driver with a dedicated crossover. The technology using a rear firing driver is inspired by the R8 Arreté. The construction adds a perfectly dosed level of midrange. R6 Arreté only.
New Compound Bass System
All R6 models (Signature, Avantgarde & Arreté) have been generously upgraded with a new internal bass system. The AudioVector Isobaric Compound Bass System (ICB) consists of 2 hand-built bass drivers, a 6.5" internal woofer and a 8" external down firing woofer. The masses of the two bass drivers involved are coupled together by the trapped air in their common internal enclosure. The system 'breathes' through a perfectly tuned bass reflex port on the front of the loudspeaker. This construction allows for deep bass, precise playback and increased dynamics in its response.
The New AudioVector Carbon Drive Units, Precision and High Definition.
The combination of Titanium Coil Technology, large powerful ceramic ferrite magnets and rigid turbulence suppressing magnesium alloy, 3-point suspend baskets and membranes made from cross woven Aramid composite Fibres, allows AudioVector to achieve a rich, clear and vibrant sound. All drive units are handmade in Denmark.

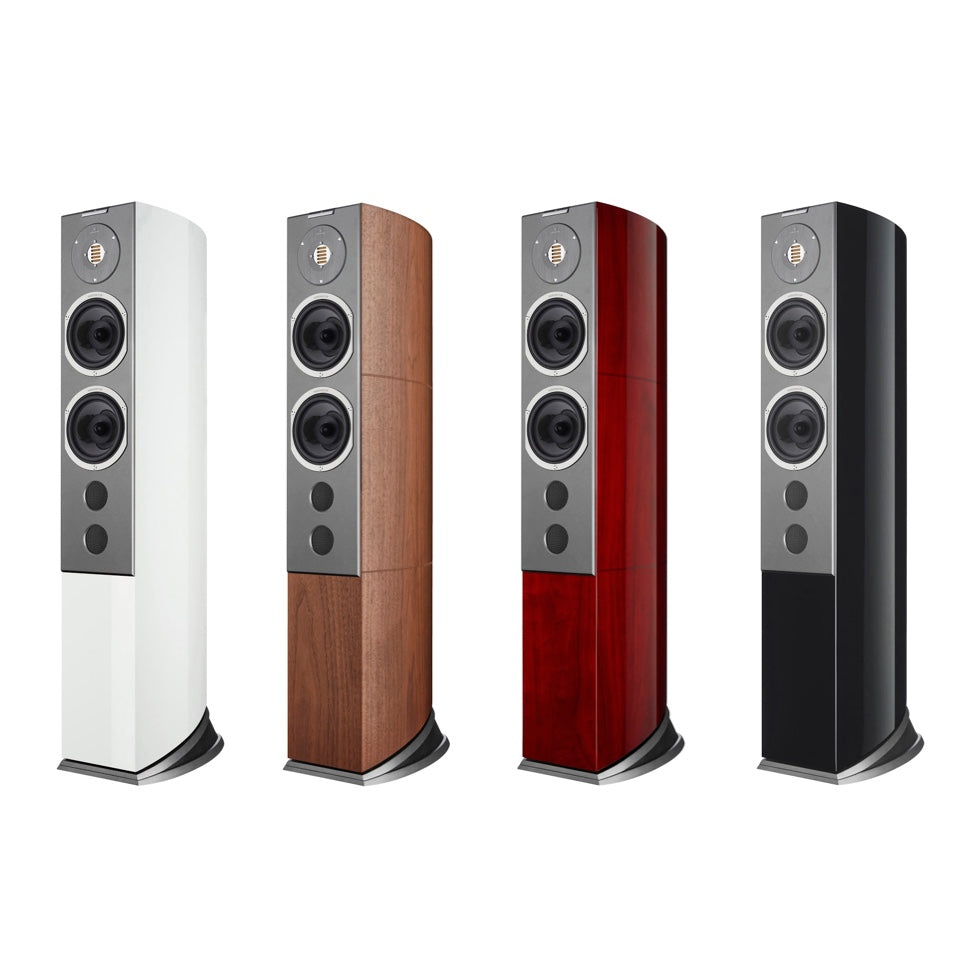

Colors & Veneers
AudioVector only uses carefully selected real wood veneers.
Standard Matte Finishes:
- African Rosewood
- Black Ash
- Italian Walnut
- White Silk
- Black Cloth Grille Included
- Custom Piano Colors on Request.
Signature | Avantgarde | Arreté | ||
Frequency Response | : | 28 Hz – 26 kHz | 26 Hz - 52 kHz | 23 Hz - 52 kHz |
Sensitivity | : | 92.5 dB/W/m | 91.5 dB/W/m | 91.5 dB/W/m |
Impedance | : | 8Ω | 8Ω | 8Ω |
Power Handling | : | 450 W | 450 W | 450 W |
X-over Frequencies | : | 100/350/3000 Hz | 100/350/3000 Hz | 100/350/3000 Hz |
Principle | : | 3.5-way | 3.5-way | 3.5-way |
Bass system | : | 8+6,5” Isobaric Bass System | 8+6,5” Isobaric Bass System | 8+6,5” Isobaric Bass System |
Bass / Mid Drivers | : | 6.5“ Carbon | 6.5“ Carbon | 6.5“ Carbon |
Rear Firing midrange Driver | : | - | - | 3” |
Treble Driver | : | R Evotech | R AMT | R AMT Arreté |
Dimension (HxWxD) | : | 123,4 x 27,8 x 43,1 cm | 123,4 x 27,8 x 43,1 cm | 123,4 x 27,8 x 43,1 cm |
R AMT Arreté | : | - | - | X |
R AMT | : | - | X | - |
R Evotech Soft Dome Tweeters | : | X | - | - |
AudioVector Carbon Drivers | : | X | X | X |
Rear Firing Midrange 3” | : | - | - | X |
Isobaric Bass Reflex | : | X | X | X |
Titanium Technology Coils | : | X | X | X |
DFF Cross-Over Technology | : | X | X | X |
Laminate Baffles | : | X | X | X |
Non Parallel Surfaces | : | X | X | X |
Nanopore Damping | : | - | - | X |
Internal Shock Absorbers | : | - | - | X |
M8 Premium Spikes | : | - | - | X |
Carbon Terminal Plate | : | - | - | X |
IUC Individual Upgrade | : | X | X | X |
LCC Low Compression | : | X | X | X |
SEC Soundstage Enhancement | : | X | X | X |
NES No Energy Storage | : | X | X | X |
NCS Natural Crystal Structure | : | - | - | X |
FGC Freedom® Grounding | : | - | - | X |
