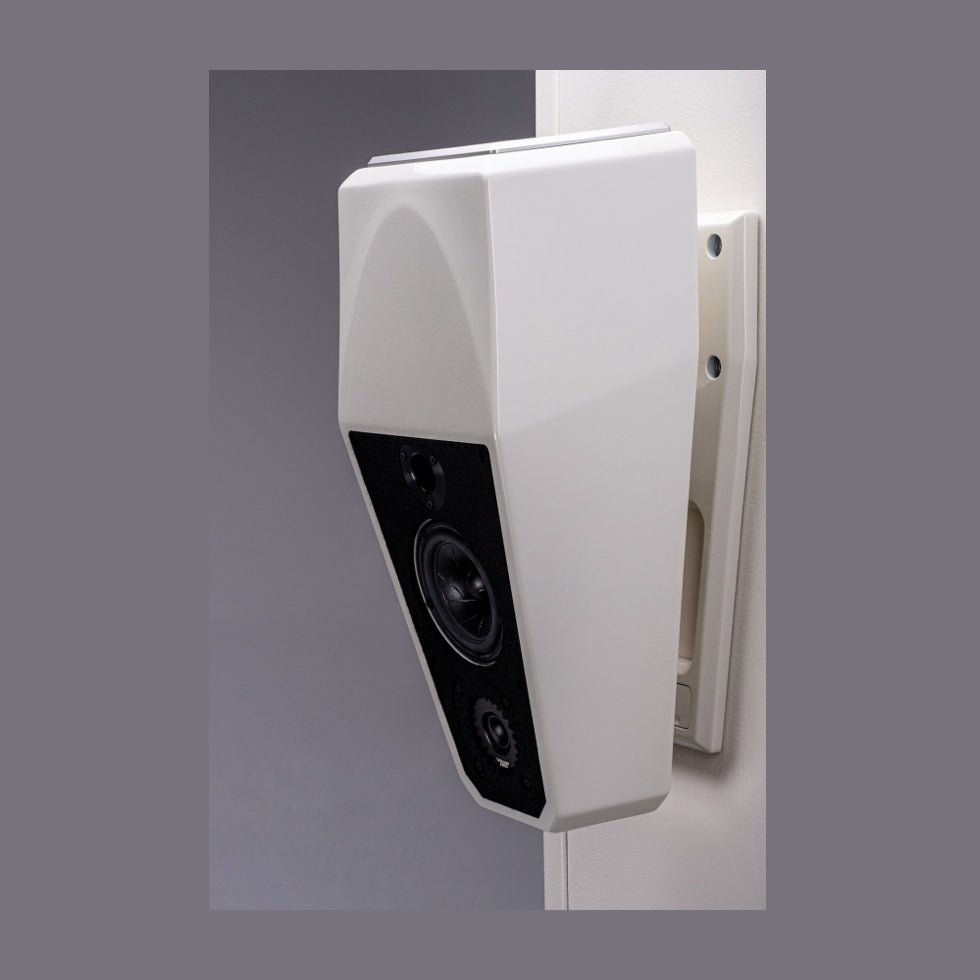

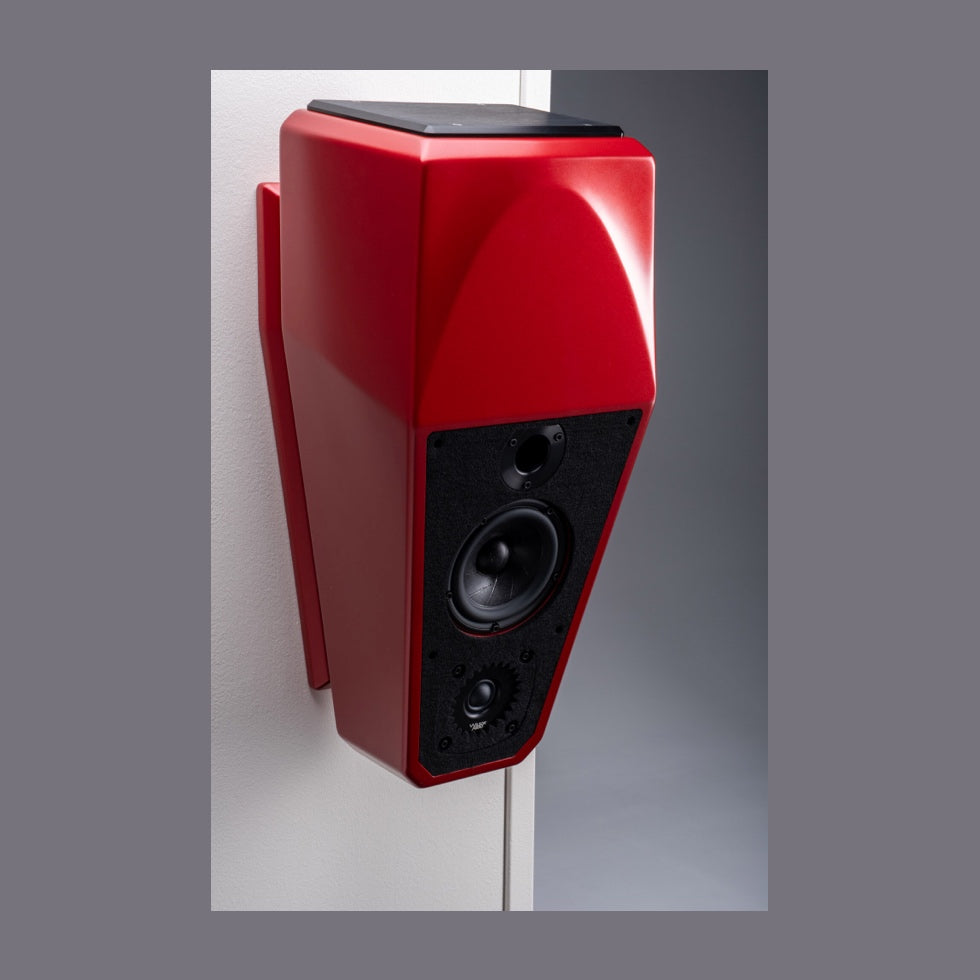

Wilson Audio Alida CSC Wall Mounted Speakers
Alida CSC includes numerous upgrades to the critical elements that sculpt the sound she delivers.
From the utilization of the Convergent Synergy Carbon (CSC) tweeter to the custom in-house built crossovers and the Mounting Bracket employing Wilson Audio's proprietary V-Material.
Alida CSC’s new Mounting Bracket can be more fully optimized for both the time-domain and driver dispersion and provides up to 30 degrees of rotation. This adjustability allows for extreme adaptability especially in the most challenging installations.
Wilson Audio’s first wall-mount loudspeaker was designed as part of the W.A.T.C.H. (Wilson Audio Theater Comes Home) system. This foundational creation’s sole purpose was to serve as the surround sound component of a 5.1 installation while nonetheless offering the measure of frequency response and dynamic contrast that would complement Wilson Audio’s large floorstanding main speakers.
Over time, however, it became apparent that the performance of the W.A.T.C.H. Surround speaker was so good that people were using it as a wall-mounted speaker in two-channel music systems. Now found in bedrooms, offices, or other locations where space or architecture precluded the use of floorstanding loudspeakers, this need was recognized and the original Alida was born. Designed for main channel system playback while still maintaining its ability to excel in multi-channel surround applications.
Captivating multi-channel audio and cinematic experiences await those who choose surround systems. Alida CSC is ready. Surround sound content has come a long way from its infancy in the early 1980’s. Dolby Atmos systems allow for configurations like 5.1.2 or 7.2.4 (the last number refers to the number of ceiling-mounted speakers).

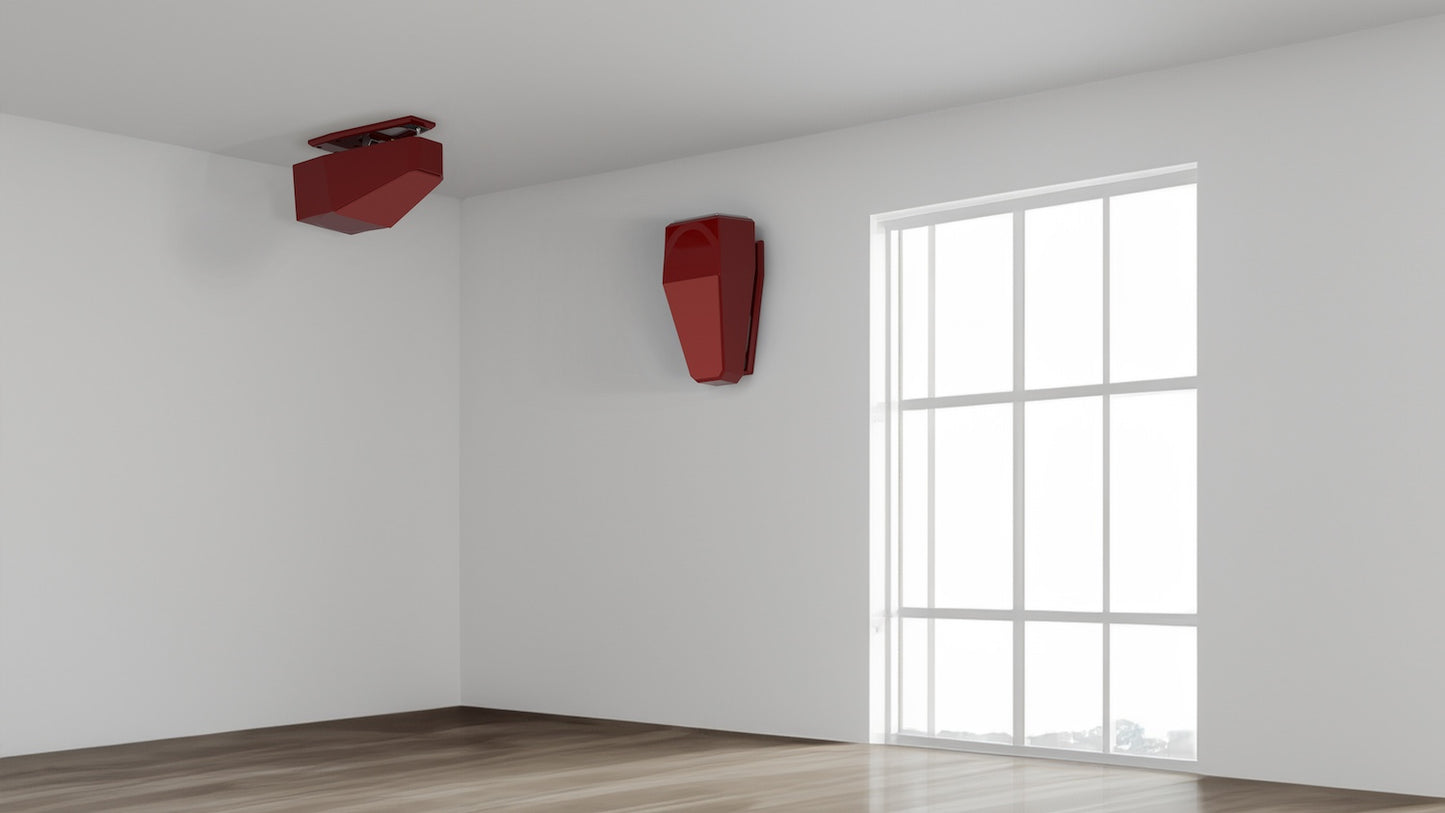

Because Alida CSC remains the uncompromising choice for state-of-the-art multi-channel audio and surround sound, Wilson Audio has naturally developed and offer the Alida Ceiling Mount option to accommodate the most ambitious Atmos configurations.
Premium Ingredients
Found strategically nested between the critical interface of the X-Material enclosure and Mounting Bracket is another one of Wilson Audio's proprietary damping materials, V-Material. The utilization of these mixed materials ensures unmatched vibration control. By isolating the enclosure from the mounting surface, Wilson Audio has drastically reduced sympathetic resonances, ushering in a new level of system clarity. Novel in its properties, V-Material provides uncommon vibration control and module isolation, similar to the design philosophy found in the prestigious Chronosonic XVX and Alexx V.
CSC Tweeter
The CSC tweeter rear wave chamber is intricately printed in-house using an advanced carbon fiber composite on one of their many 3D printers. This bespoke tweeter was designed initially for the Alexx V and subsequently incorporated into the design of Alexia V and Sasha V and promises industry-leading high-frequency extension and ambient detail. Experience the profound silence between notes and immerse yourself in heightened harmonic richness.
Capacitors
Wilson Audio continues investing in the future and has done so again by having two customized, state-of-the-art capacitor winding machines built for their in-house capacitor manufacturing. These one-of-a-kind machines meticulously produce the most accurate, consistent, and best-sounding capacitors Reliable Capacitors (a division of Wilson Audio) has ever crafted. This is a testament to the dedication and passion they pour into every Wilson Audio product, in every step of manufacturing, and in every element of their creations.
With Wilson Audio's newly designed AudioCapX-WA-Cu (copper) capacitors, built to industry-leading tolerances, the Alida CSC adds unprecedented resolution to your audio journey. This special copper version of the AudioCapX-WA capacitor, integrated into the tweeter crossover, unlocks a new level of high-frequency micro-detail and an open sense of air to your system's sound.
Mount

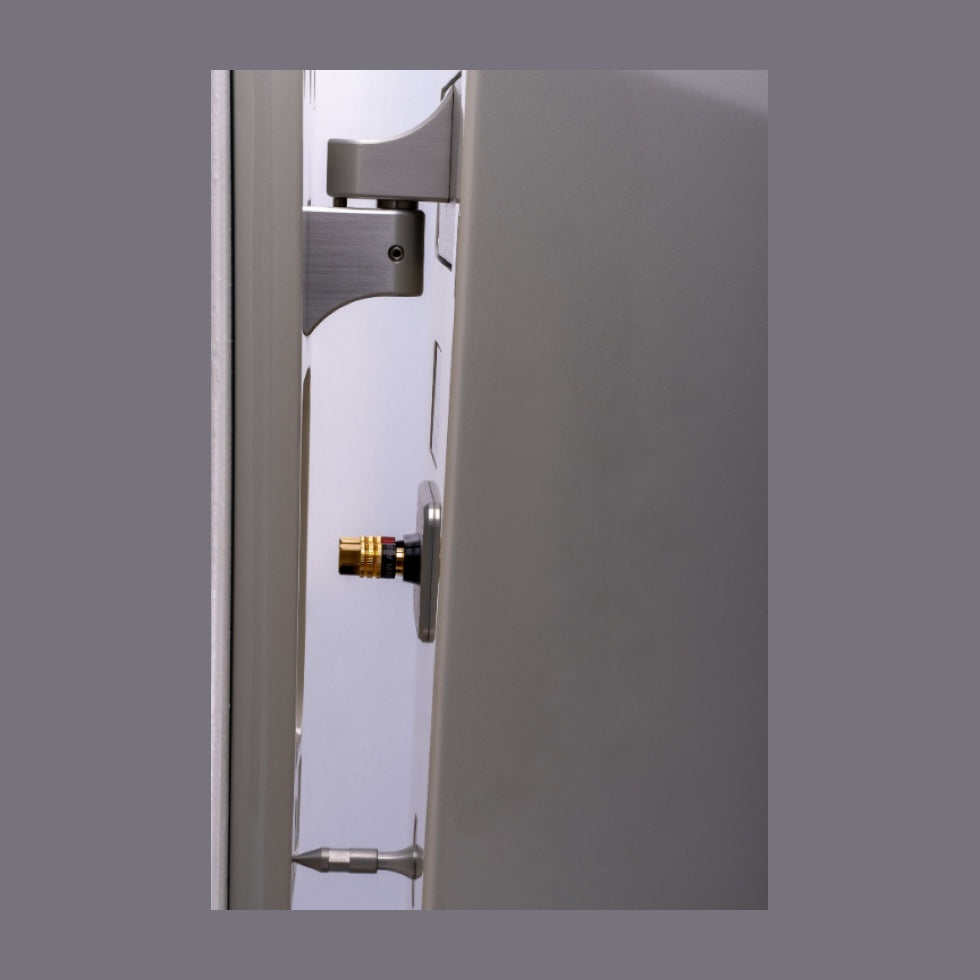

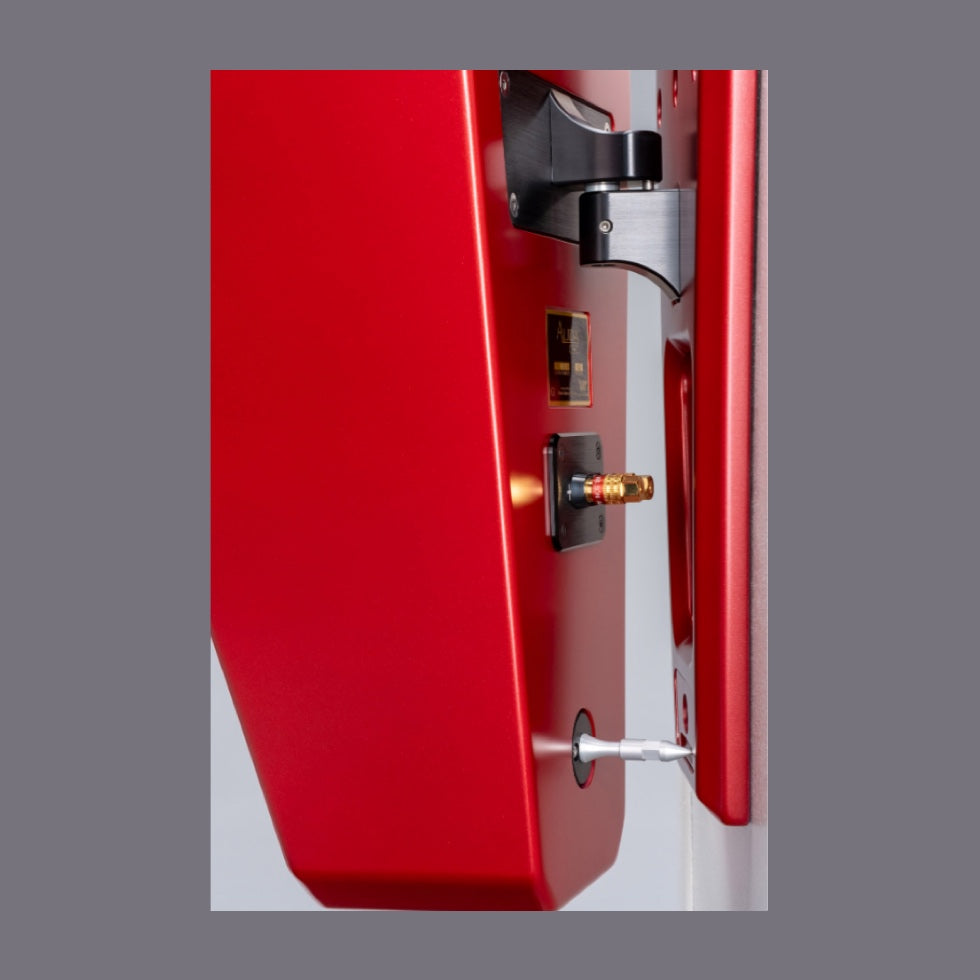

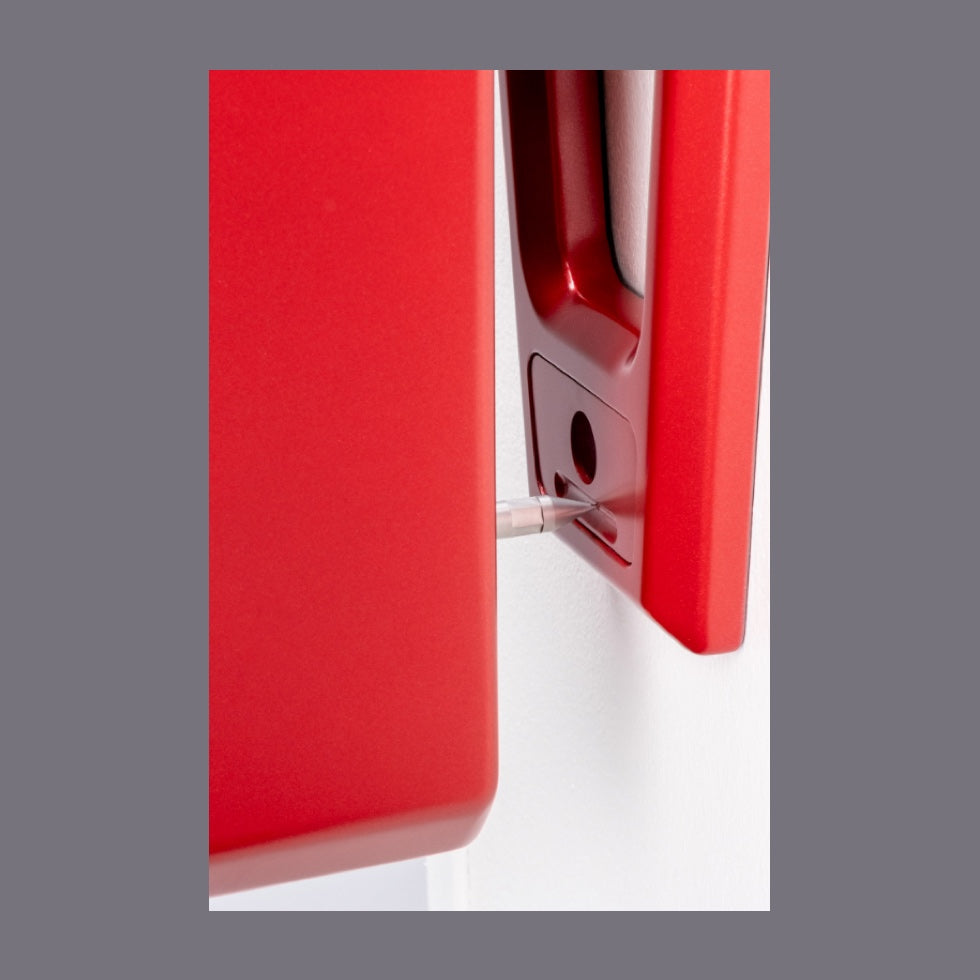

The greatest challenge for any surface-mount loudspeaker is accounting for the adverse interaction with the wall and ceiling, as well as degradation caused by the mount itself. This causes frequency nonlinearities—accentuating some frequencies and effectively masking others. Alida CSC minimizes wall/ceiling resonant interactions through a new thoroughly re-engineered mounting system.

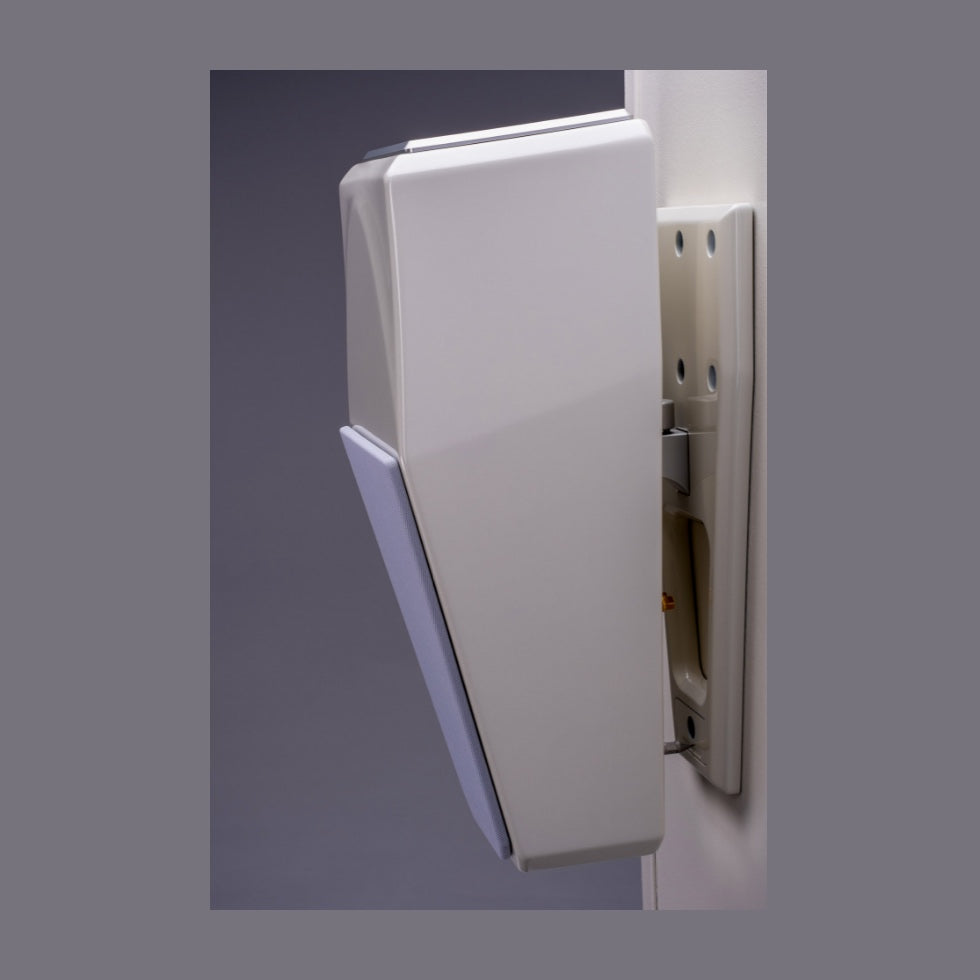

Alida CSC’s new Mounting Bracket can be more fully optimized for both the time-domain and driver dispersion and provides up to 30 degrees of rotation. This adjustability allows for extreme adaptability especially in the most challenging installations.
Standard Colors:
Galaxy Gray
GT Silver
Quartz
Carbon
Medio Grigio
- Upgrade & Pearl Colors on Request.
Wilson Gloss™ Colors
Wilson Audio’s commitment to quality begins with the sound of their loudspeakers, but hardly ends there. The physical beauty and craftsmanship of Wilson products have long set the benchmark for the industry. Now, Wilson Audio is excited to introduce an updated and expanded range of colors, which include new Premium Pearl options.
WilsonGloss is a multi-stage process, from a proprietary protective gel coat layer through base color to the final series of clear coats—all followed by meticulous hand polishing. The final finish is unrivaled—even by the world’s greatest automobile manufacturers. Wilson Audio have updated the selection of upgrade colors, which are available at a modest surcharge. Wilson Audio Premium WilsonGloss includes five new colors, each in a special pearl finish, which involve additional paint steps. WilsonGloss Premium is the ultimate expression of sophistication and beauty.
When combined with a choice of seven grille-cloth colors, it’s easier than ever to individually design your Wilson loudspeaker so that it will complement your décor, or express your pride of ownership. Along with standard black grilles, you can alternatively specify Slate Grey, Parchment Grey, Mocha, Blanco White, Le Mans Blue or Crimson Red. With hundreds and hundreds of combinations available, you have the ability to design a Wilson speaker unique to your taste and décor.
For the ultimate in individual expression, Wilson Audio offers Custom Sample Match WilsonGloss finishes. Through your Wilson Dealer, provide them with your wall color, favourite automotive paint, or just about any color sample and we can, for an additional cost, create your loudspeakers in a one-of-a-kind WilsonGloss finish. This service includes on-site storage of custom paint for a period of five years. Contact your Dealer for program requirements and pricing.
Enclosure Type Woofer | : | Front Ported / X-Material, S-Material, V-Material |
Mid Woofer | : | Doped Paper Pulp |
Tweeter | : | Doped Silk Fabric |
Mid-Woofer | : | One – 5 3/4 inches (14.61 cm) |
Tweeter | : | One – 1 inch (2.54 cm) |
Sensitivity | : | 87 dB @ 1 Watt @ 1 meter @ 1 kHz |
Nominal Impedance | : | 4 ohms / minimum 5.56 ohms @ 263 Hz |
Minimum Amplifier Power | : | 25 Watts per channel |
Frequency Response | : | 31 Hz – 32 kHz +/- 3 dB Room Average Response [RAR] |
Overall Dimensions Mounted on Bracket | ||
Height | : | 65.58 cm |
Width | : | 28.84 cm |
Depth | : | 32.48 cm |
Weight Per Channel (with bracket) | : | 28.12 kg |
Approximate Total Shipping Weight | : | 104.33 kg |
